KDSS Rear Sway Bar Drop Kit (Upgraded Billet Fixed Link)

5th Gen 4Runner KDSS Rear Sway Bar Drop Spacer Kit (Upgraded Billet Fixed Link)

Shipping: Free U.S. Shipping | Ships within 24–48 Hours

Features & Benefits

• Prevents bending of the OEM KDSS fixed link
• Protects the KDSS strut from misalignment damage
• Allows full rear suspension droop
• Eliminates track bar and sway bar interference
• Supports extended-travel suspension setups
• Clears 285/70/17 spare tire in factory location
• Stronger than any OEM KDSS rear link

Design & Materials

• CNC-machined from 7075 aircraft-grade billet aluminum
• Significantly stronger than OEM steel
• Designed to withstand direct impacts without bending
• Anodized black finish (only color available)
• Overbuilt for real off-road use
• The spacer simply repositions the strut — the fixed link carries the load

What’s Included

• (1) 7075 billet fixed link

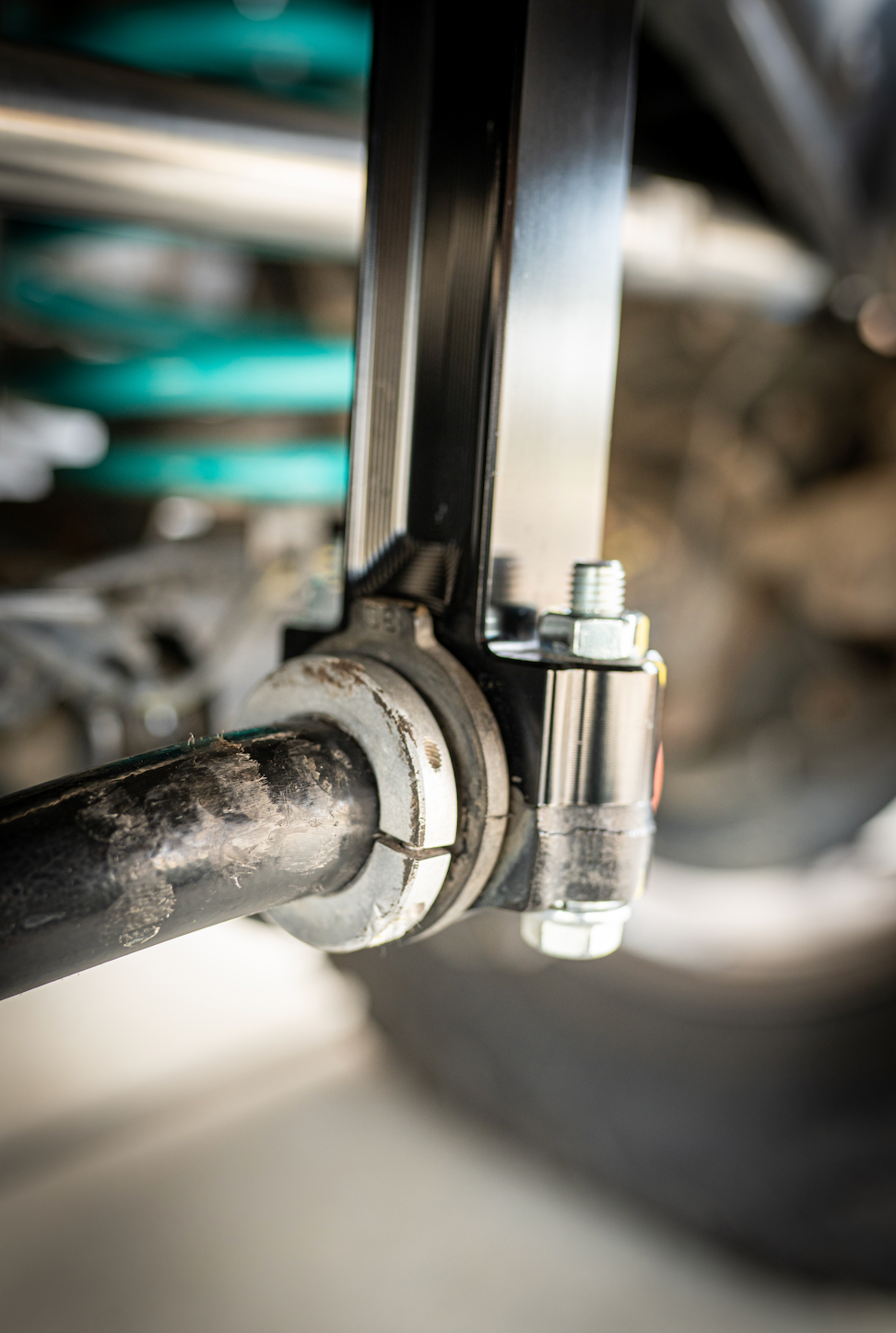

• ¾" Pro Bearing uniball with snap ring (pre-installed)
• (2) M10 × 1.25 × 60mm flange head bolts (clear zinc)
• (2) M10 × 1.25 locking nuts
• (2) Stainless steel high-misalignment spacers
• (2) Washers (not used on all vehicles)

Kit Options & Pricing

Choose the option that fits your setup:

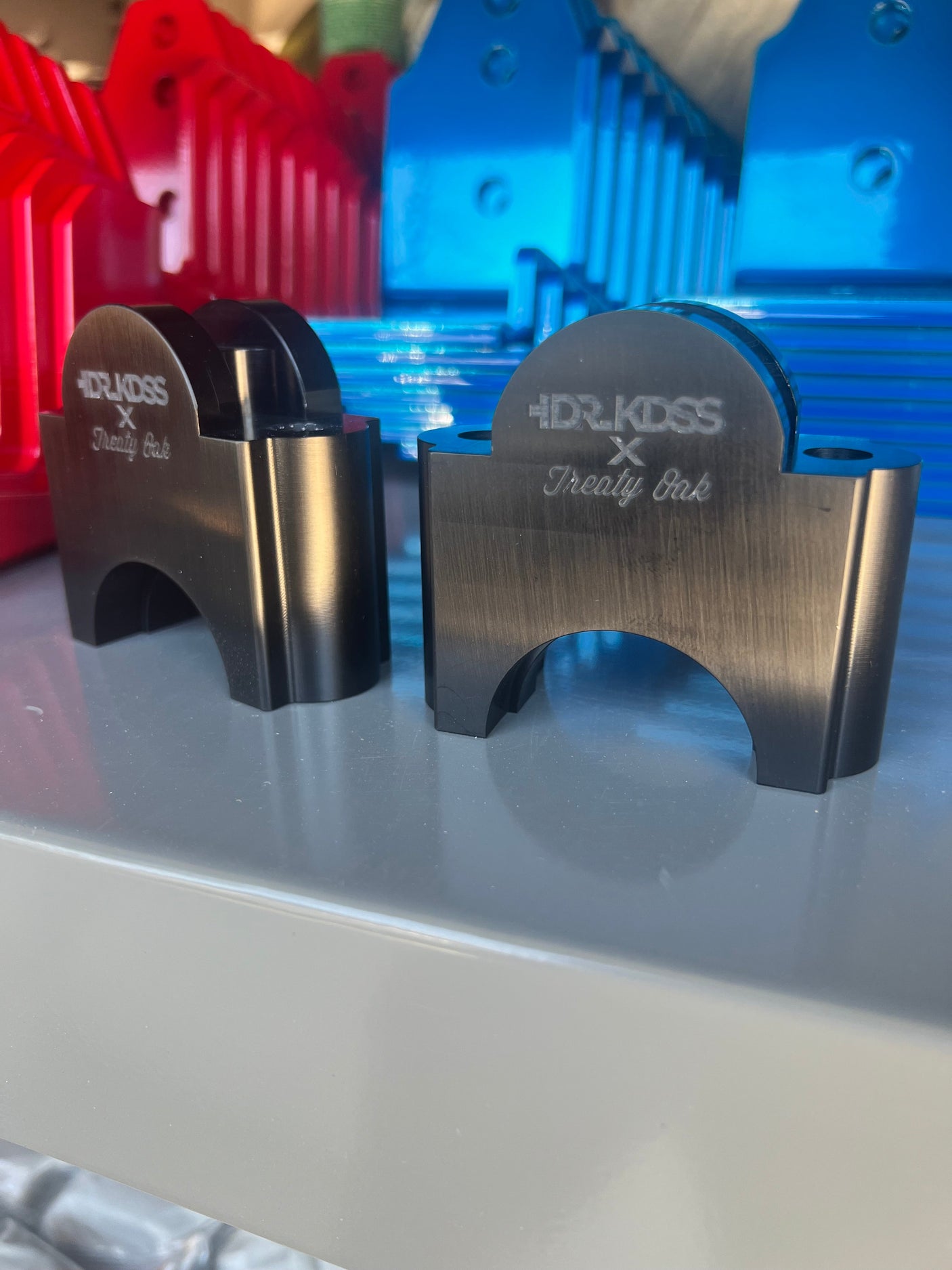

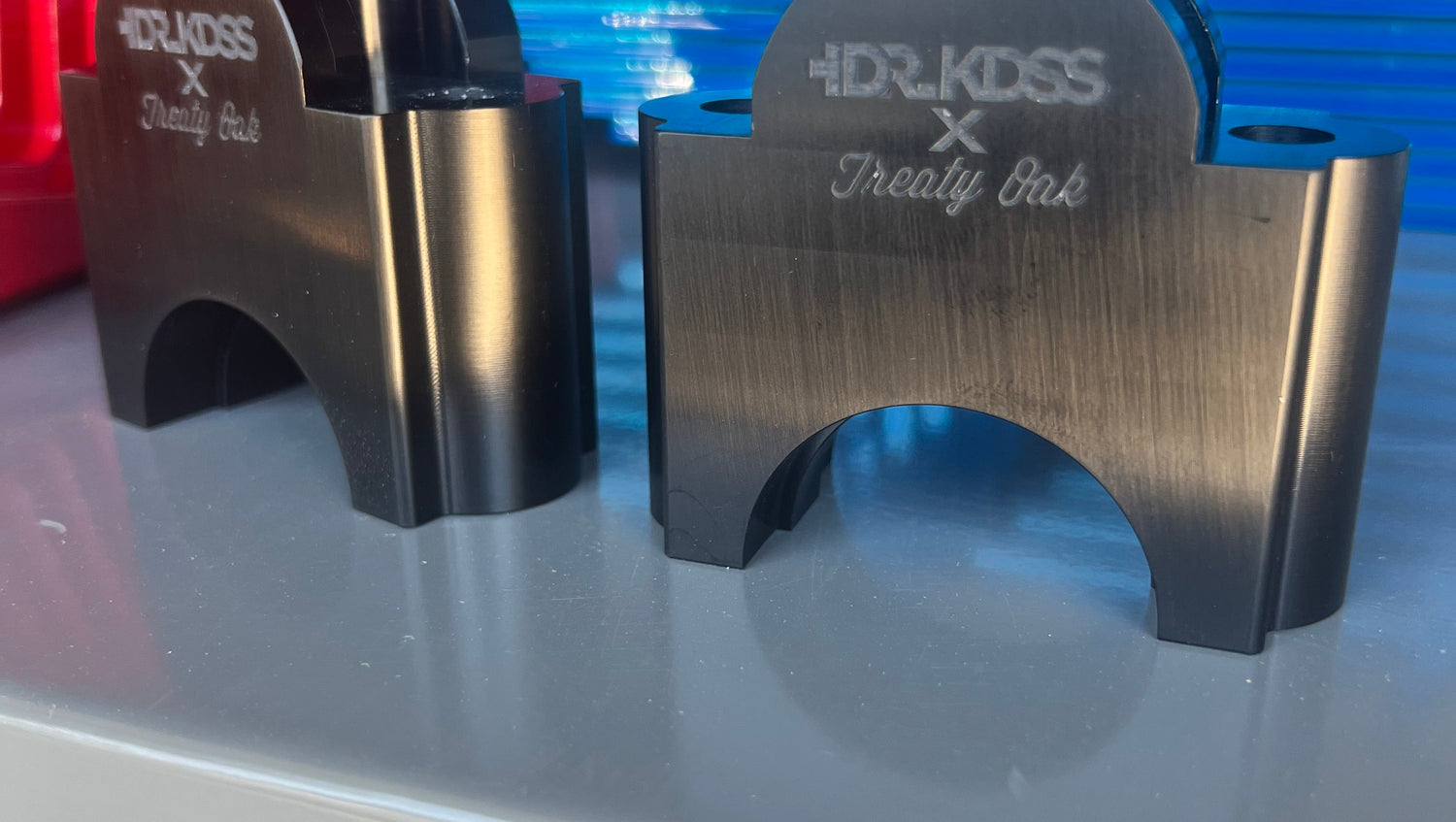

• Rear KDSS Drop Spacers (Pair) – $180
  Old-school solution. Simple and effective.
• Billet Fixed Link Only – $200
  For customers upgrading an existing spacer setup.
• Billet Fixed Link + Driver-Side Spacer – $250
  Complete upgraded solution for harder use.

KDSS Lean

KDSS drop kits are not designed to fix or prevent KDSS lean. Lean is caused by imbalance in the KDSS hydraulic system, not sway bar position, links, or suspension geometry.

If you believe a drop kit corrects KDSS lean, you’ve likely been misinformed. Contact us directly for accurate guidance.

Why Install This?

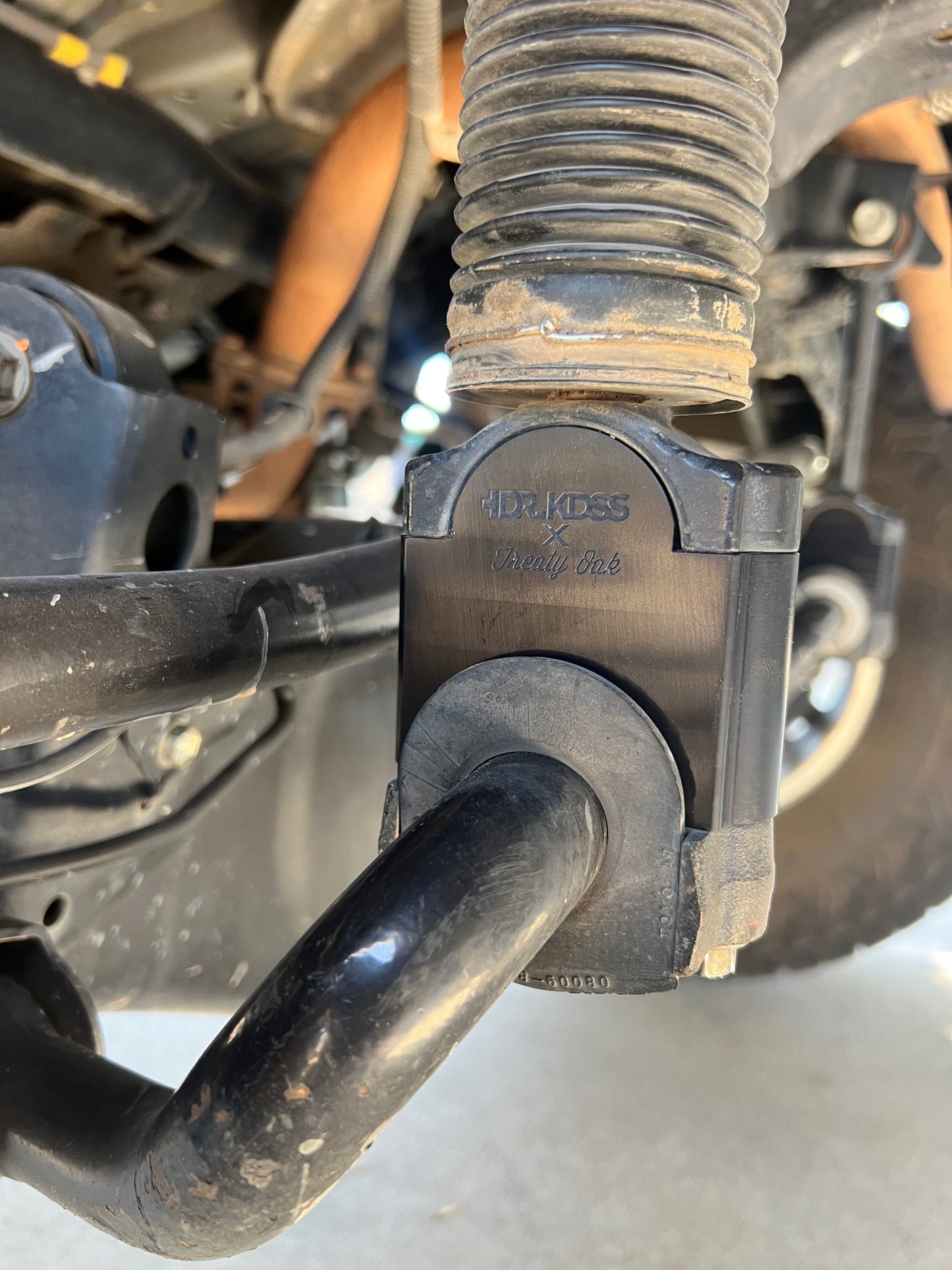

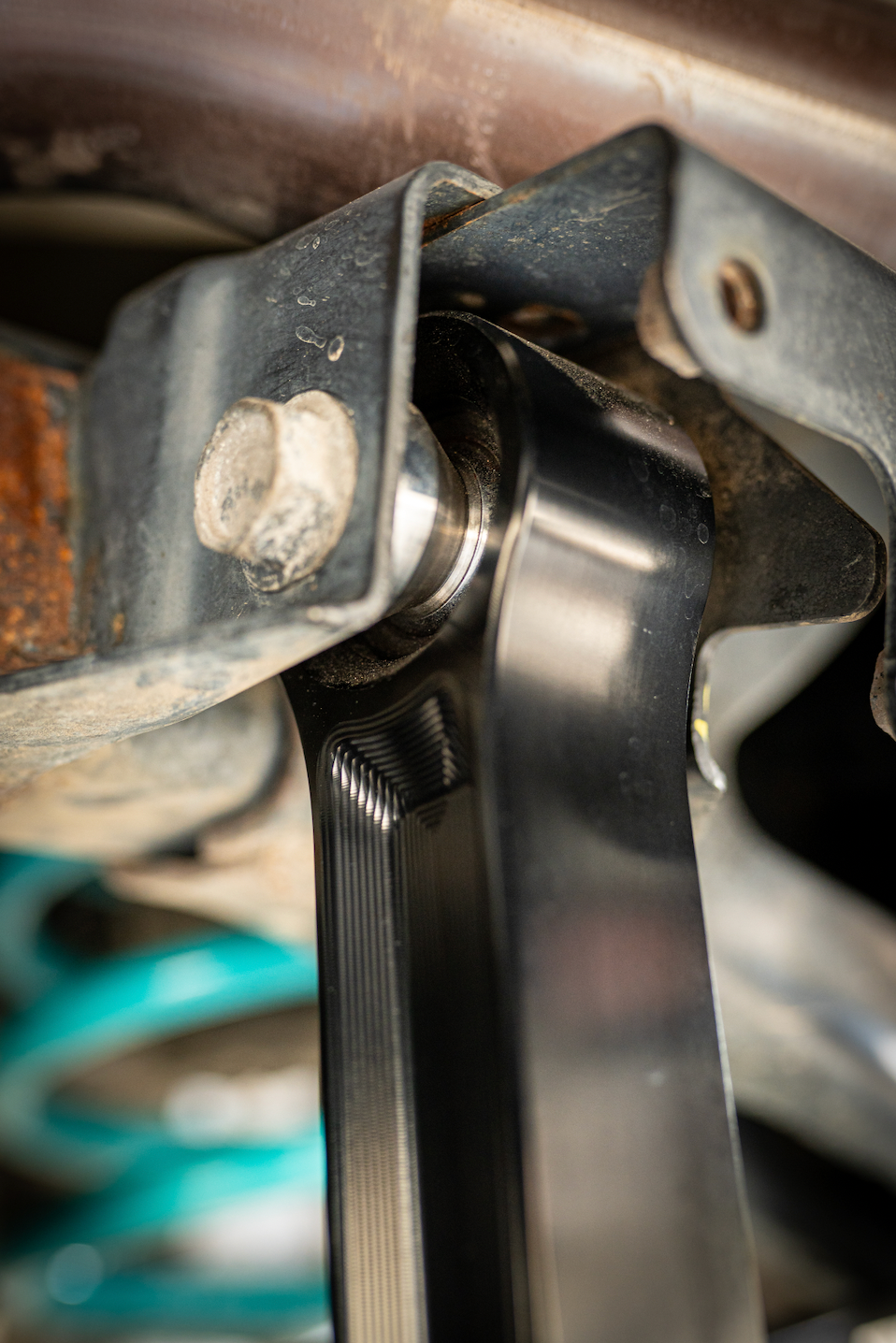

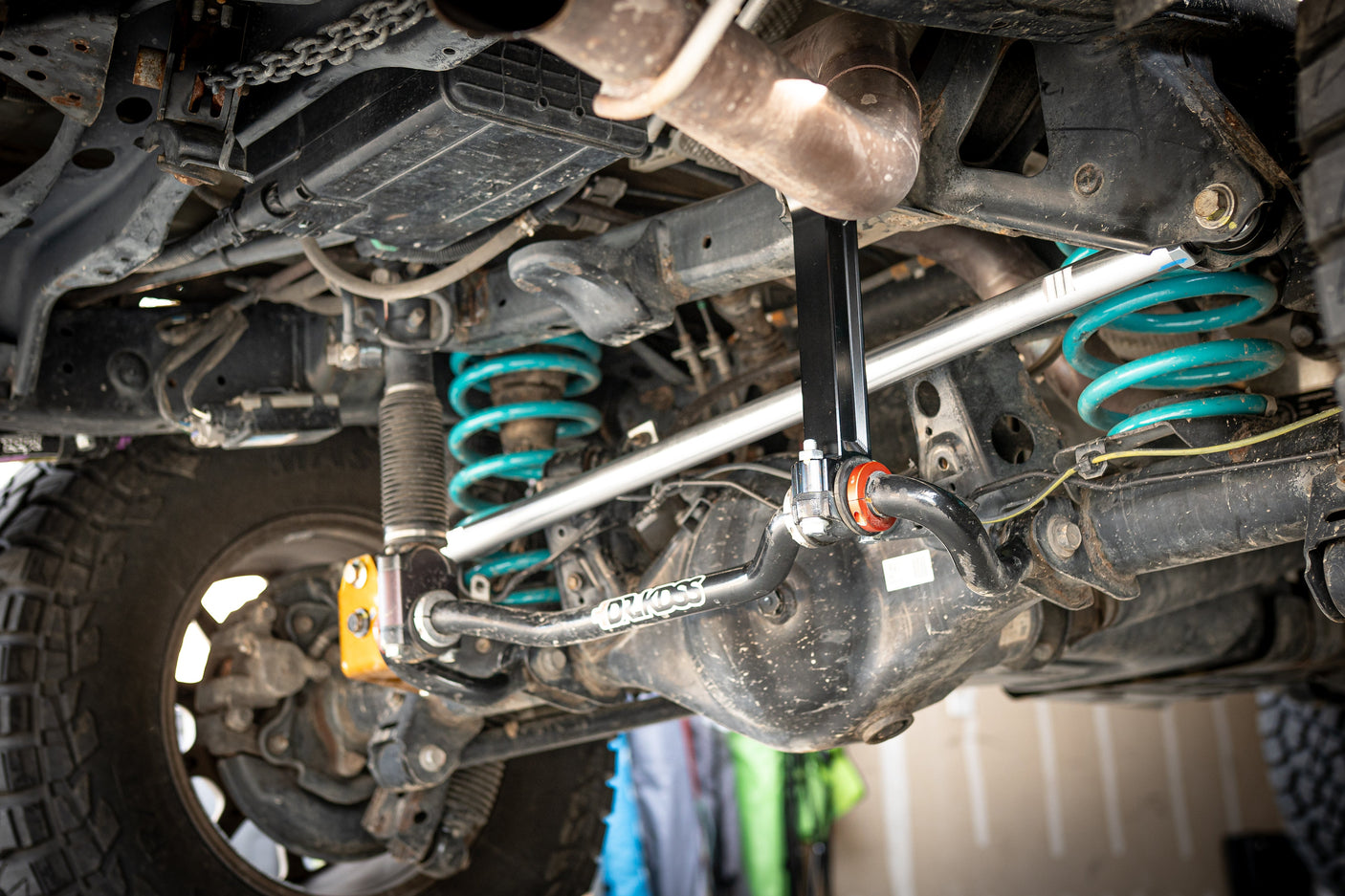

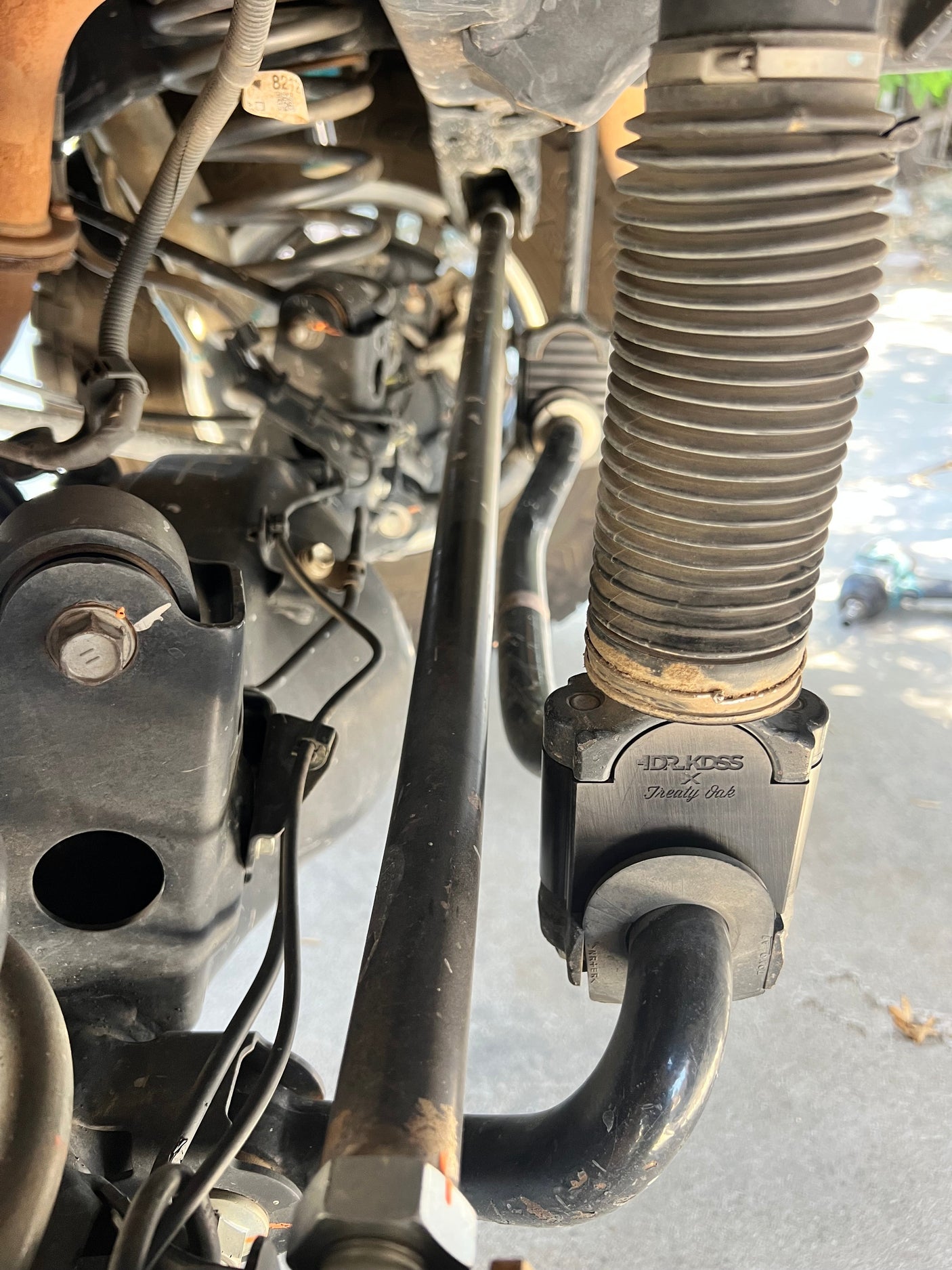

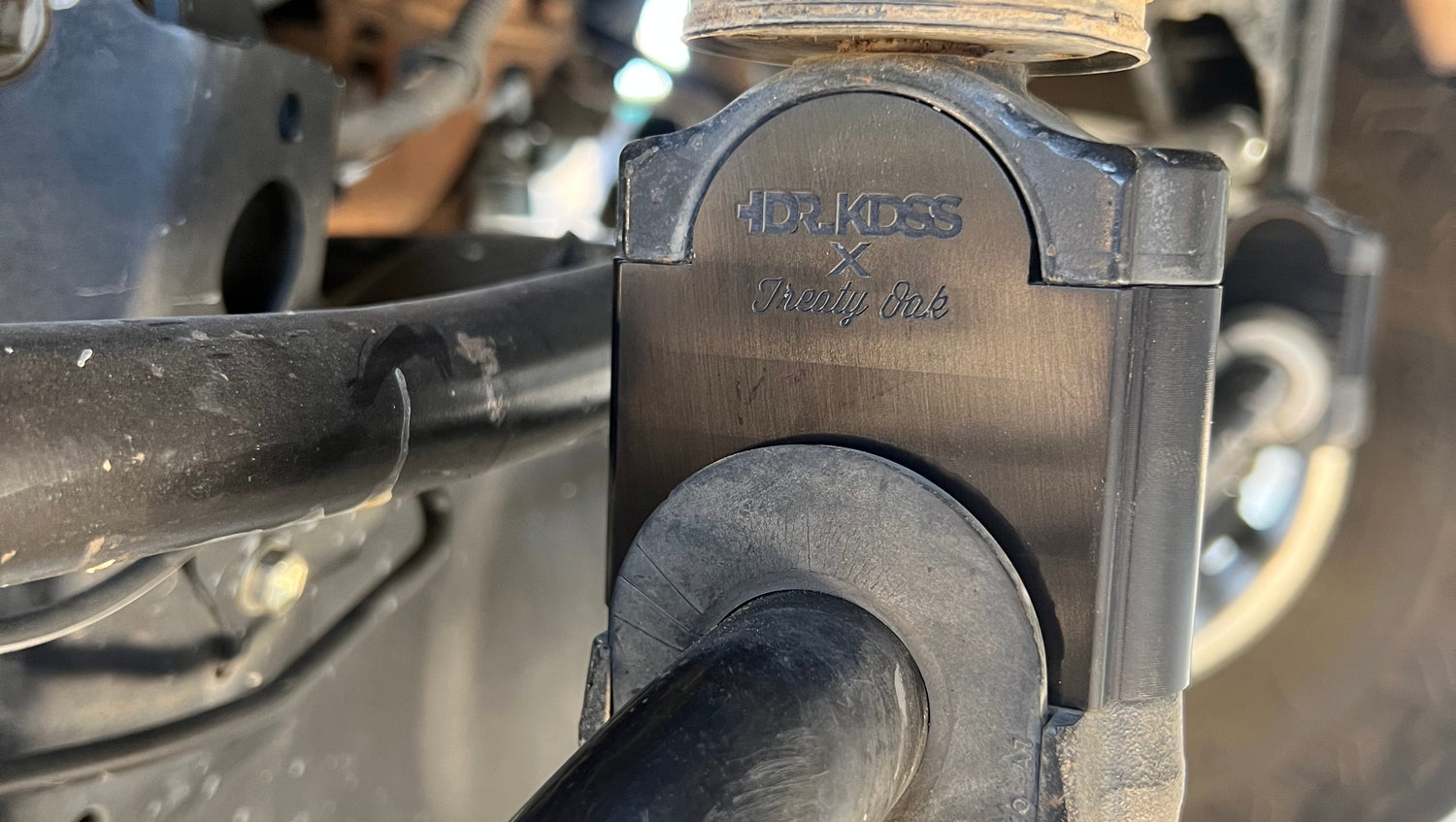

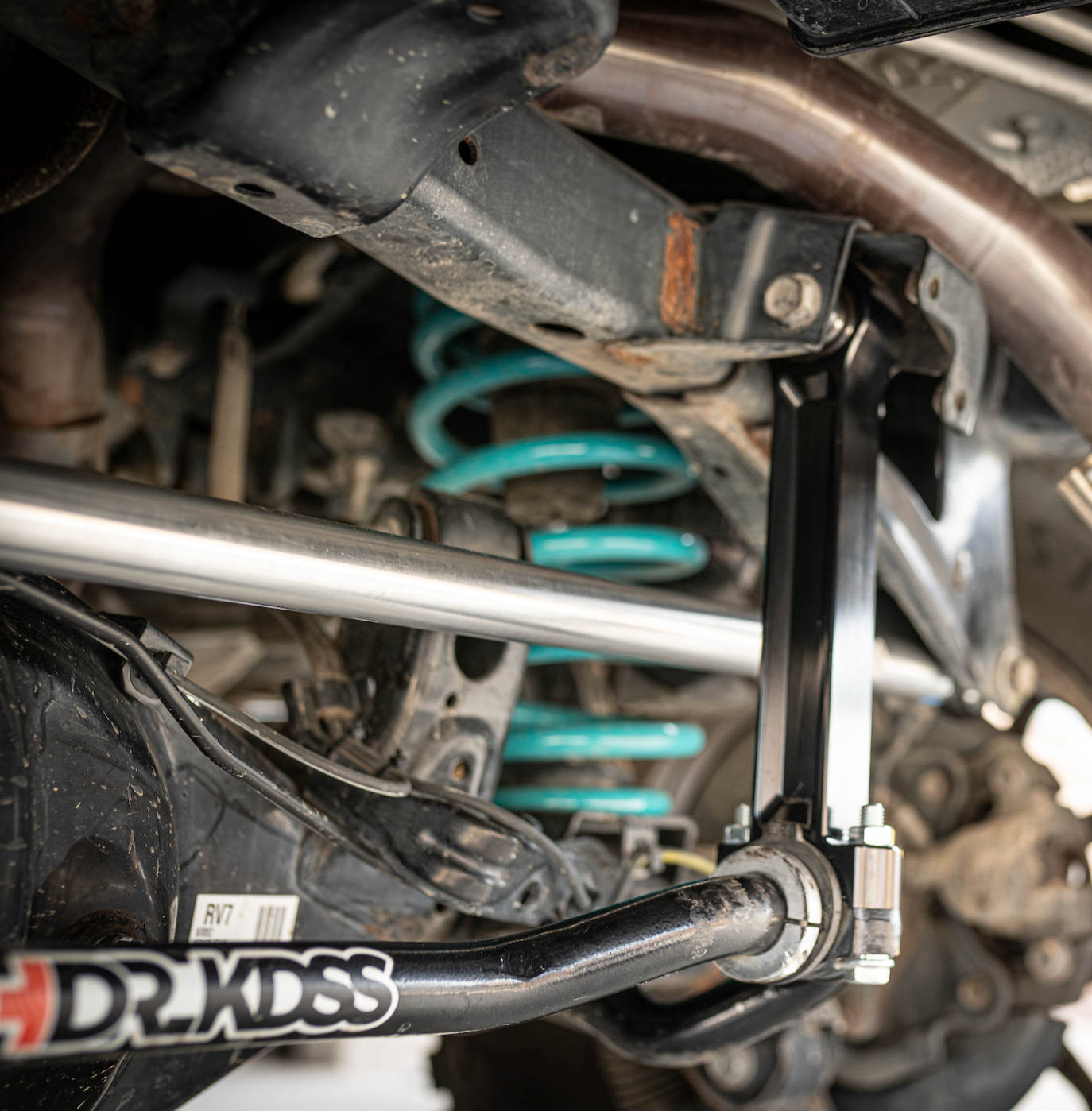

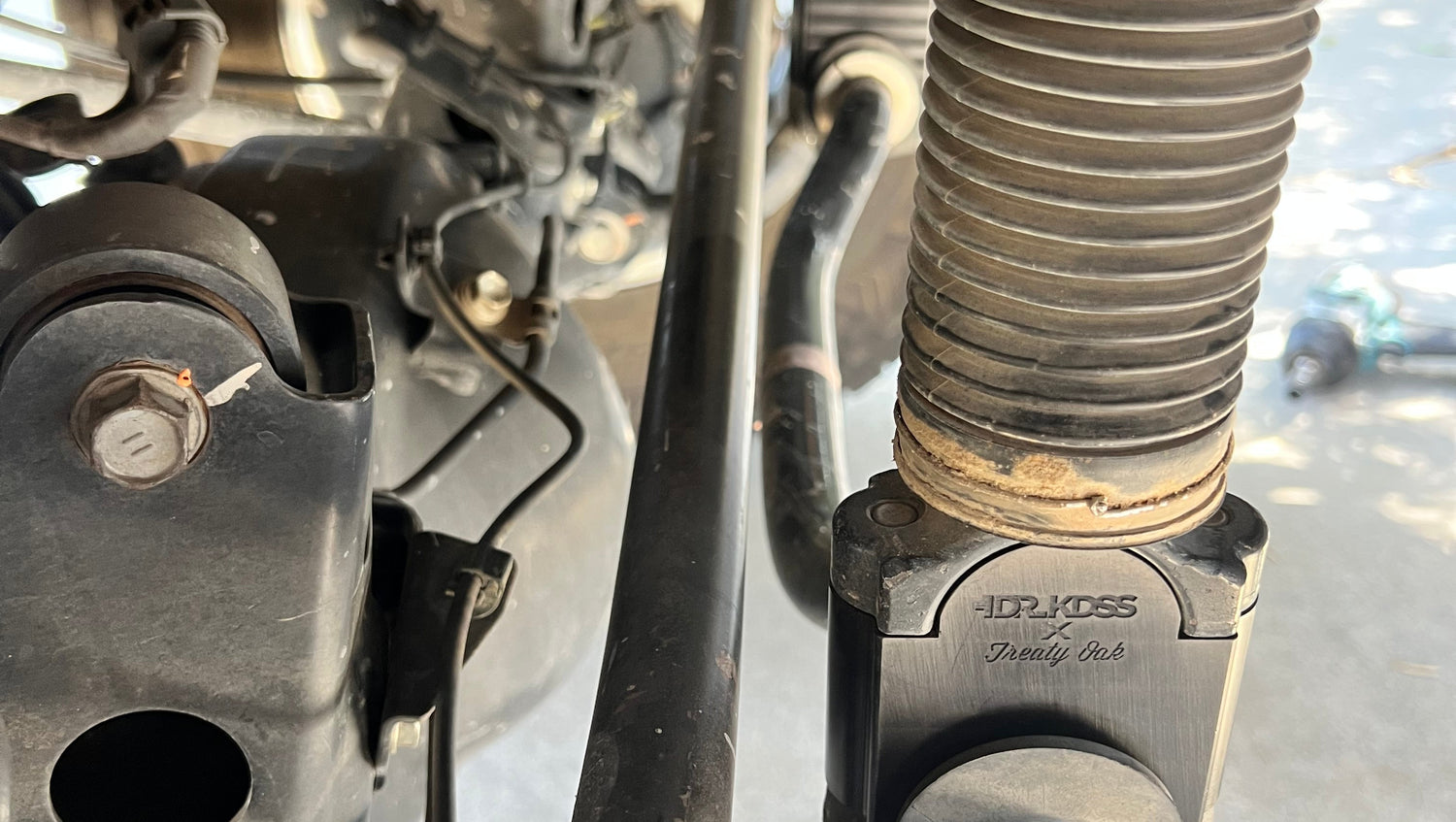

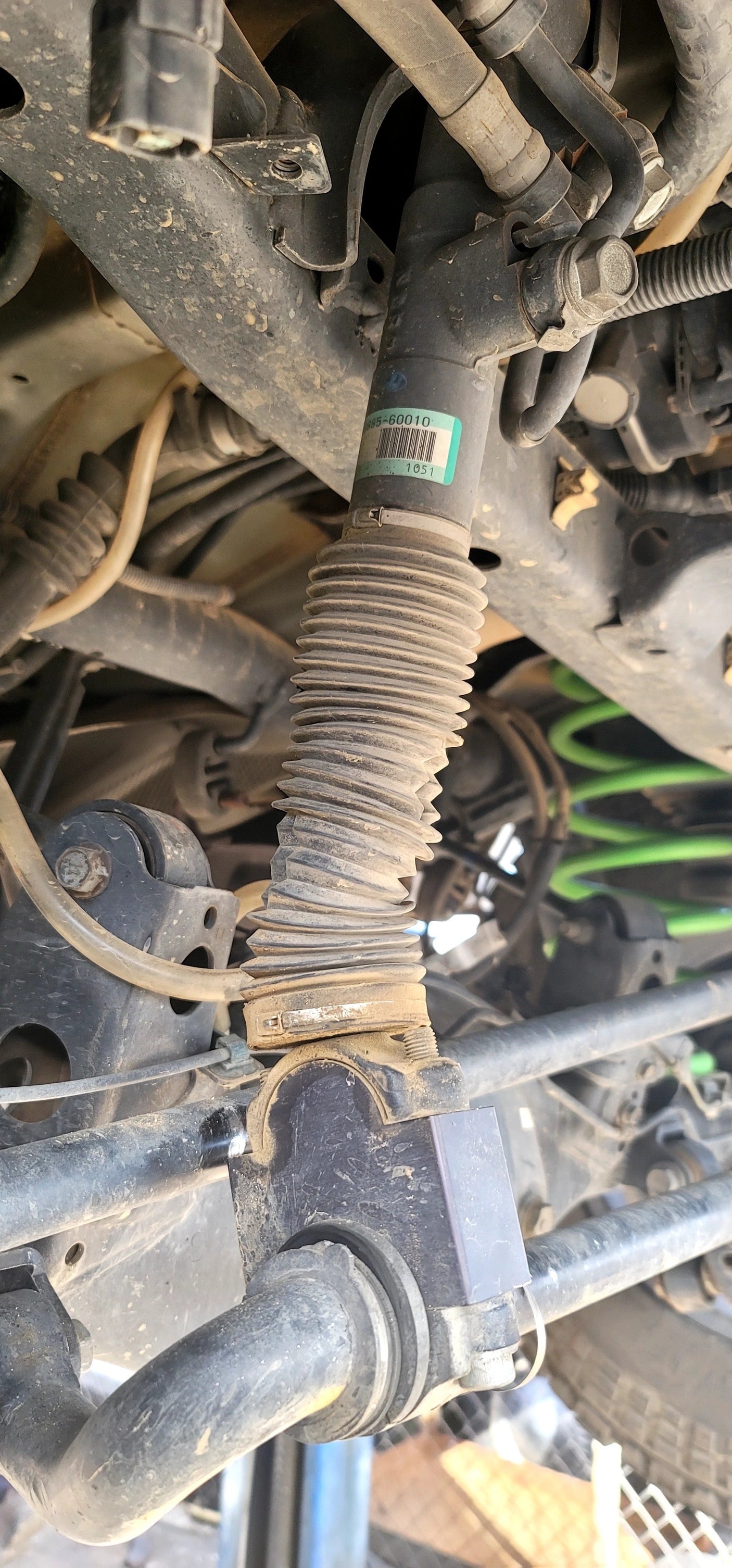

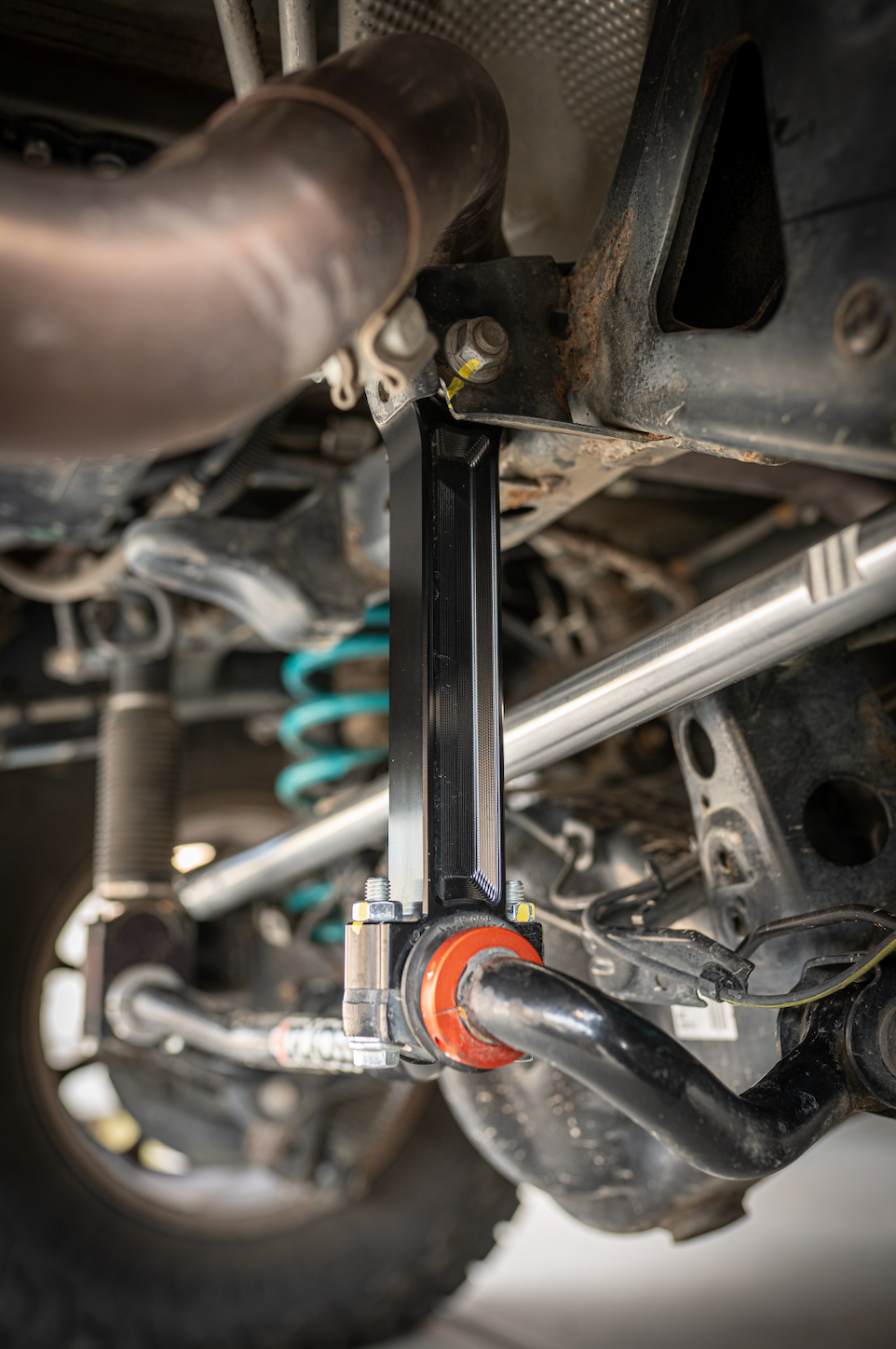

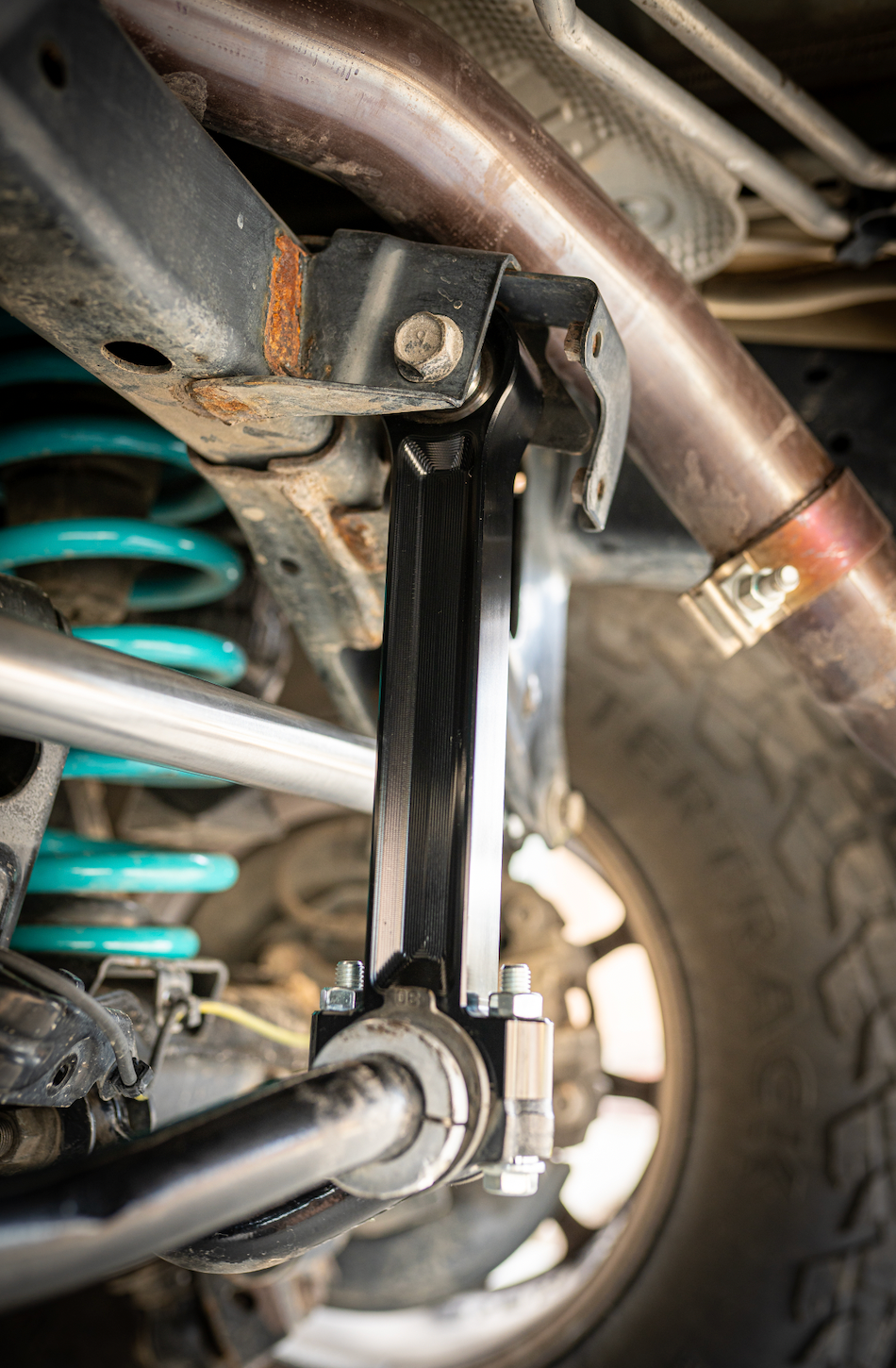

This kit replaces the OEM passenger-side fixed KDSS link with a longer, stronger billet 7075 aluminum link while retaining a spacer on the driver-side KDSS strut.

It achieves the same result as traditional rear drop spacers, but in a stronger, safer, and more trail-resilient way.

Why This Exists

Modern KDSS trucks are being wheeled harder than ever. In off-road situations like ledge drops or rock impacts, the OEM fixed link can take a direct hit.

• The factory link can bend
• The sway bar becomes misaligned
• The KDSS strut can be damaged

Once alignment is compromised, failures compound quickly. This billet link eliminates that weak point.

What It Does

• Replaces the weak OEM passenger-side KDSS link
• Maintains correct sway bar position at full droop
• Prevents KDSS strut damage
• Allows full suspension droop with extended-travel shocks
• Keeps the KDSS piston in its OEM operating range
• Allows up to a 285/70/17 spare in the factory location

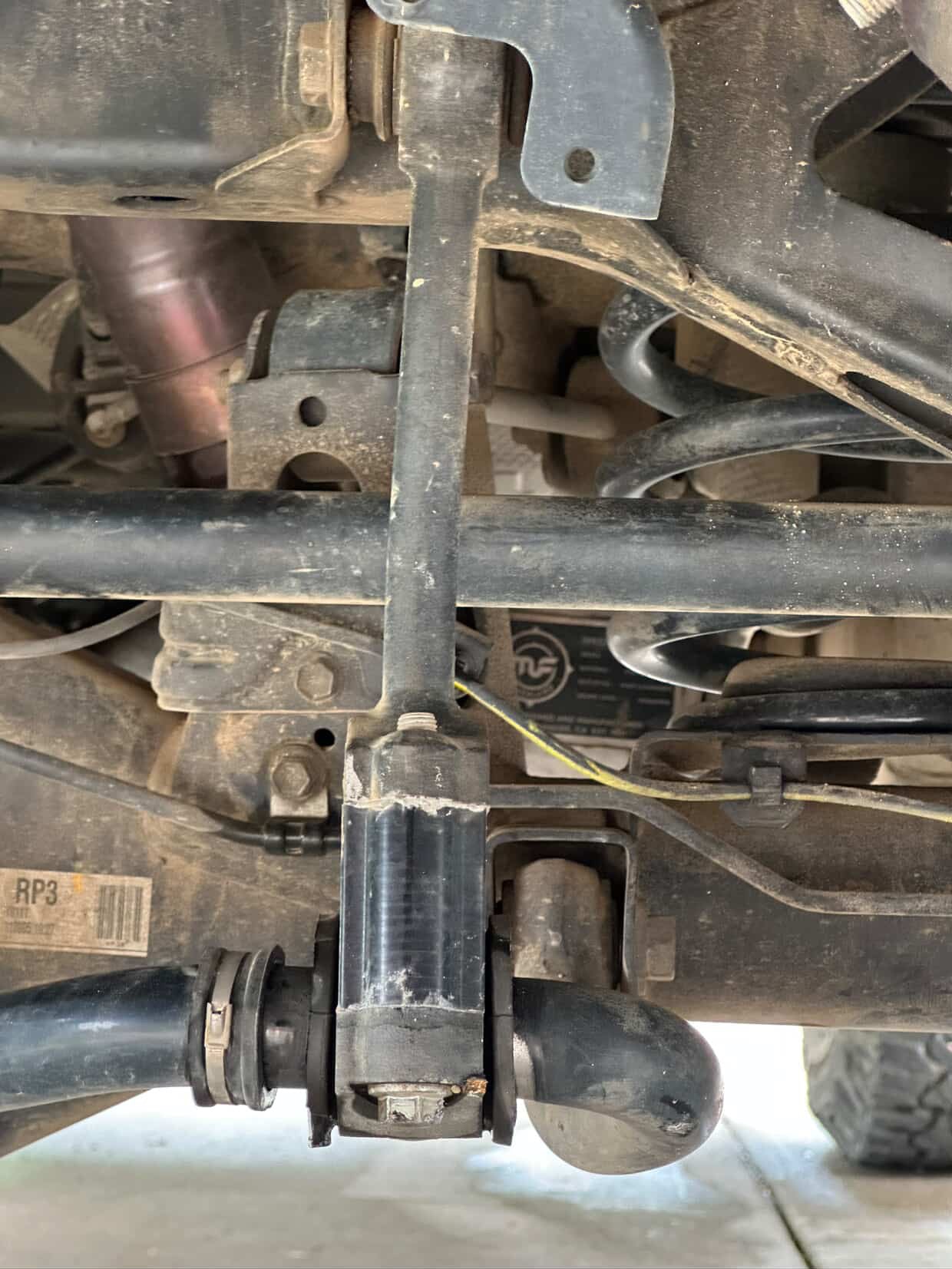

OEM Failure Example

The OEM fixed link is a known weak point. Hard trail impacts can bend the link, forcing the sway bar out of position and damaging the KDSS strut.

This billet link removes that failure point entirely.

Compatibility Notes

• Compatible only with DRKDSS or Treaty Oak rear drop spacers
• Requires 2" rear spacer dimensions
• KDSS-equipped vehicles only
• Not compatible with unknown or generic spacer brands

Do You Need This Kit?

• Running extended-travel rear shocks? Yes
• Wheeling harder than stock? Yes
• Want to run a 285/70/17 spare? Yes
• Mall crawler that never articulates? Probably not — and that’s okay.

Install Notes

• Best installed with vehicle on its own weight
• Rear axle may be placed on jack stands for clearance
• Support sway bar with a hydraulic floor jack

Before starting:

• If your vehicle is 2–3+ years old or exposed to salt, soak bolts with penetrating oil for several days. These bolts are known to seize and break if rushed.

Real Talk

• You don’t need this kit — but once you wheel harder, you’ll want it
• Some buy it for function
• Some buy it for clearance
• Some buy it because it looks cool
• All are valid reasons

20% restock fee applies. Know what you’re buying.
