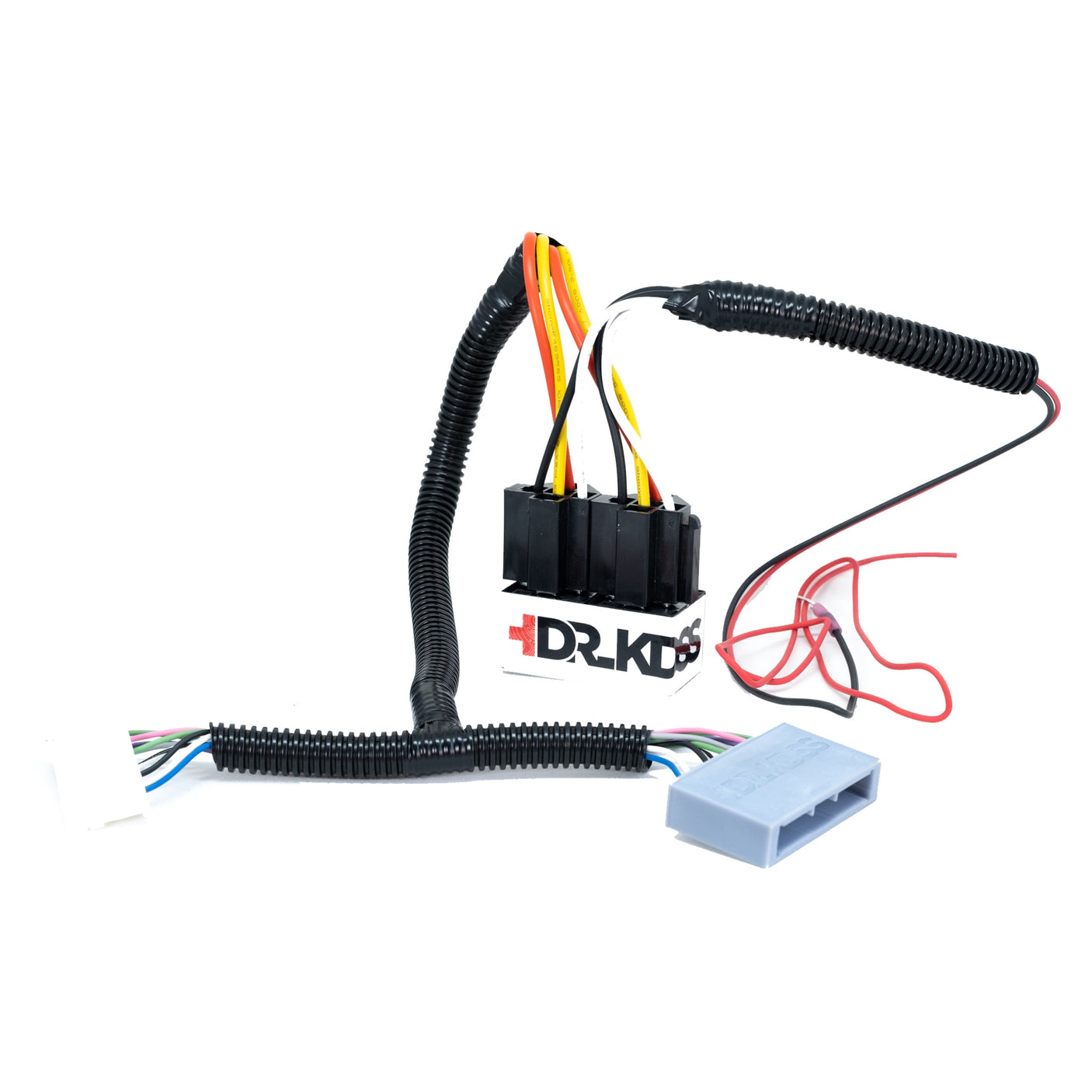

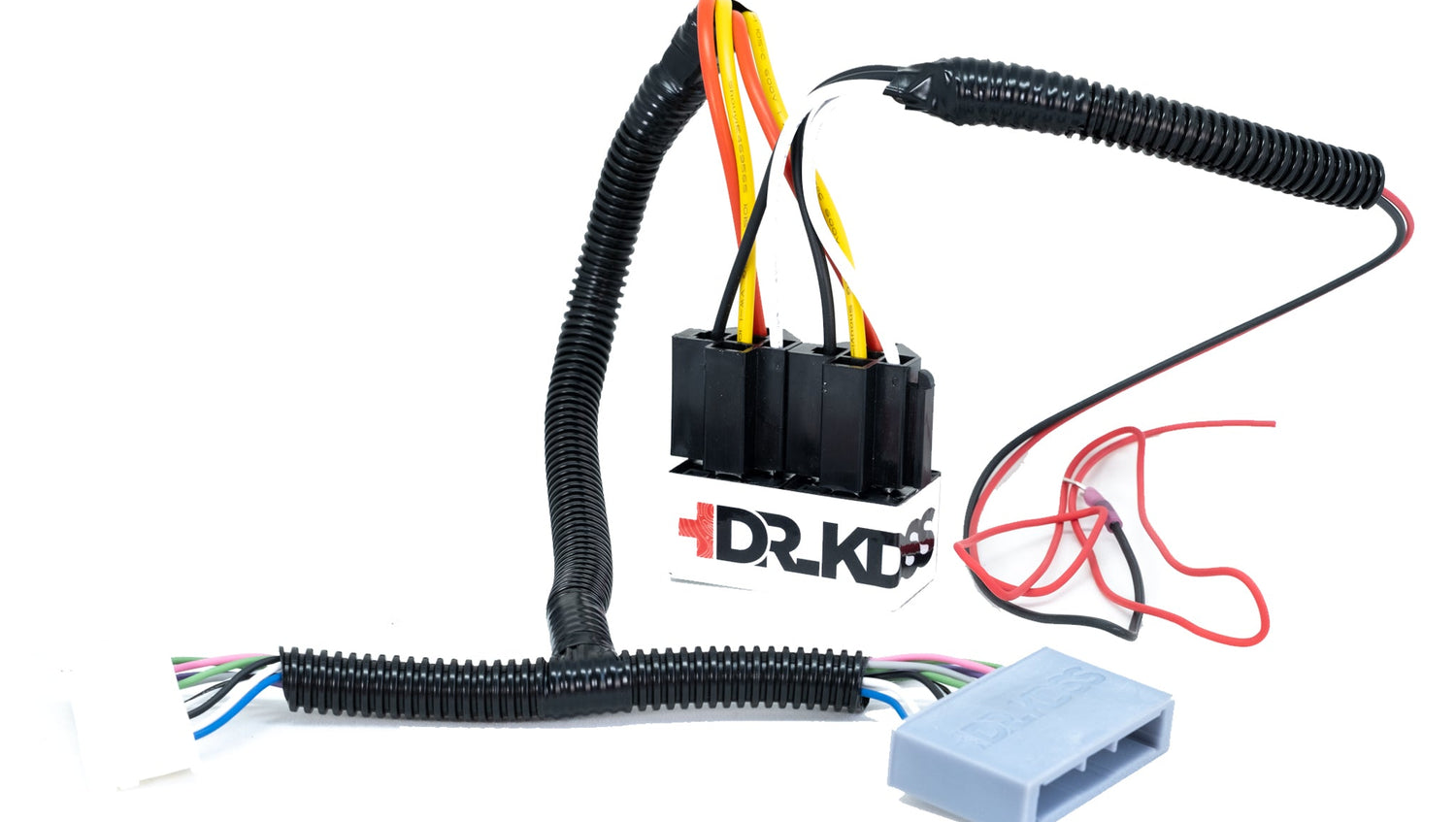

KDSS Control Harness Kit (Harness Only)

5th Gen 4Runner (2010 - 2024) KDSS Switch Harness From DR. KDSS

What It Does

• Gives you manual control over your KDSS system.

• Lets you open and close the KDSS hydraulic valves electronically.

• Helps correct or reduce the common “KDSS lean” after a lift.

• Plug-and-play connection at the KDSS ECU — minimal wiring required.

• Works with a dash switch or your existing switch controller (Switch-Pro, etc.).

Why You Need It

• From the factory, KDSS automatically locks above 12 mph for on-road handling and unlocks below 12 mph for off-road flex.

• That’s great in theory — but in reality, it’s overly stiff at the wrong times and unpredictable after a lift.

• With this harness, you take control.

• Flip the switch to unlock the system and let the suspension move freely.

• Hit the switch again to lock it back up for tighter cornering.

• Use it to balance the system, cure KDSS lean, and dial in the feel of your suspension on your terms.

How It Works

• Uses genuine OEM Toyota connectors, pins, and color-matched wiring for perfect fit and reliability.
  Connects directly to the KDSS ECU — no cutting or splicing factory wires.

• 3D printed resin connector housing (since Toyota never made a true mating connector).

• Harness is QC-tested before shipping.

• Simple crimping required to connect to your chosen switch.

Install Notes

• Harness only — does not include switch or fuse box cover.

• Add the DRKDSS KDSS Harness Combo for a full plug-and-play setup.

• Use your own wire extensions, connectors, and mounting hardware if running custom switch locations.

• Download the full KDSS Control Harness Install PDF for step-by-step guidance.

• Does not remove KDSS malfunction codes if the system is already faulted.

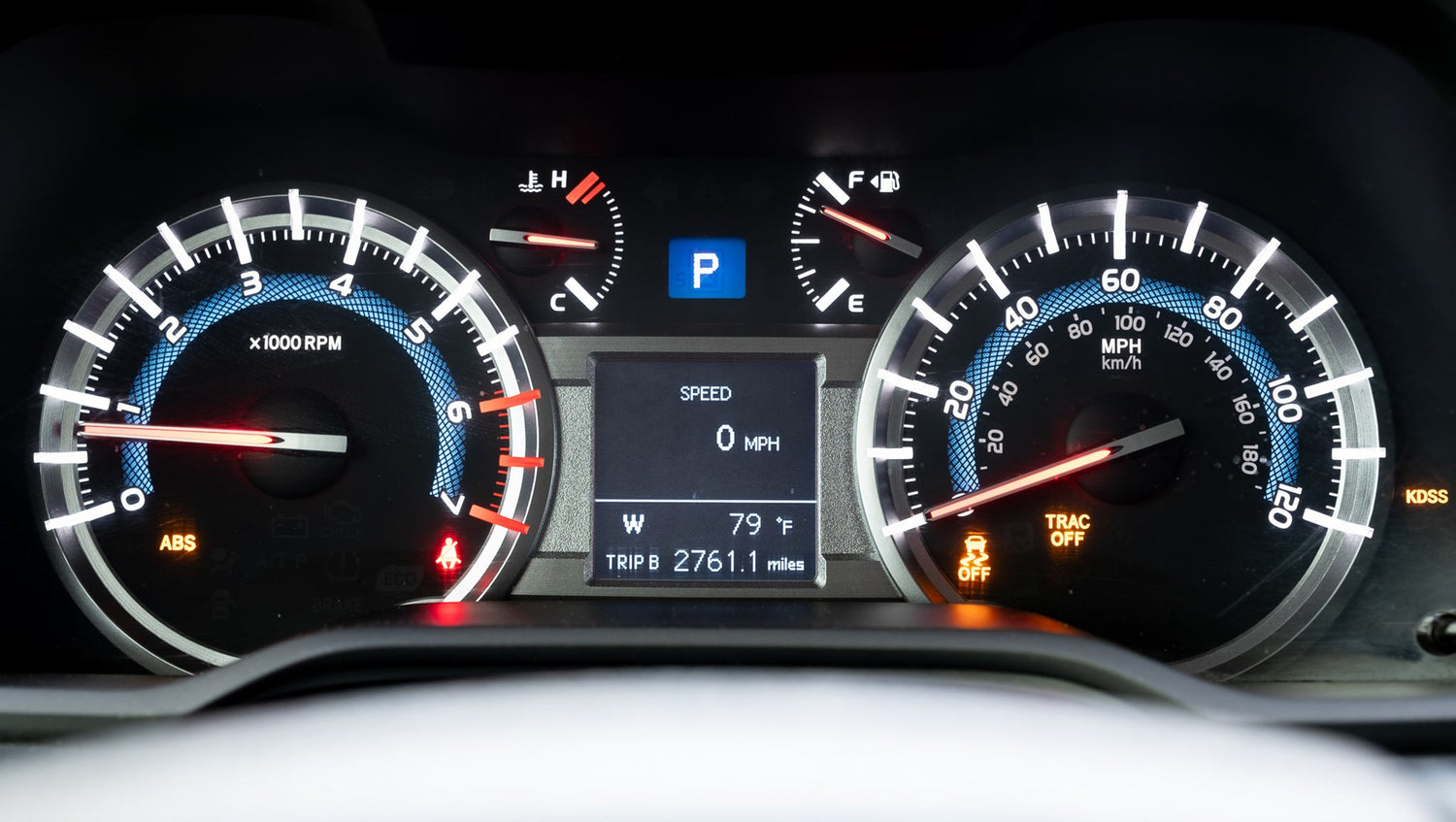

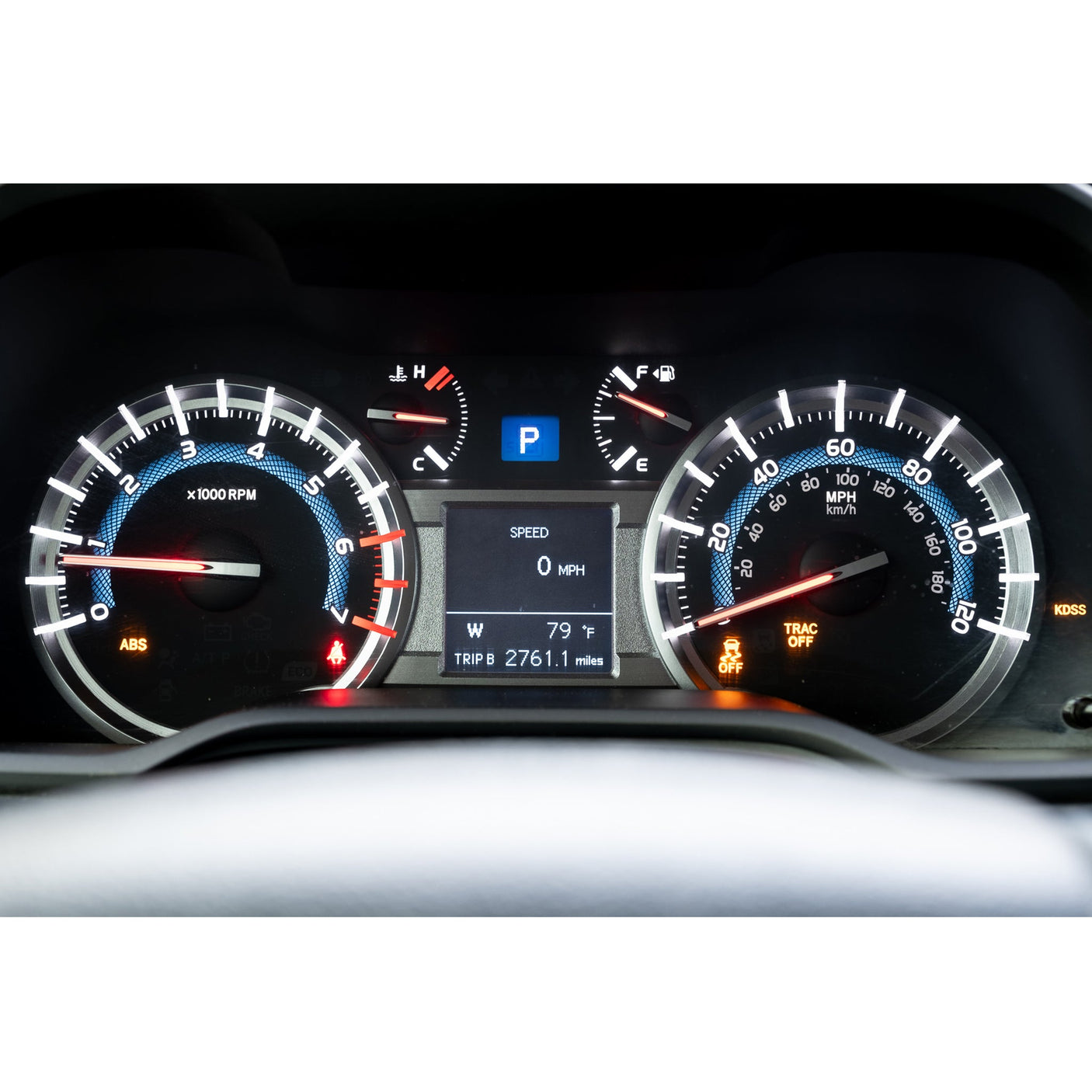

• 2020+ vehicles will get a kdss malfunction error on the screen, all you need to do is hit ok and be on your way

Check Out our install on Trail4runner.com

Model Year & Prado Compatibility

⚠️ Prado owners — you must check your connector pin layout before ordering!
Look at the wire next to the connector clip:

If the slot next to the clip is empty → Order 2010–2019 version (Picture A)
If a wire is in that slot → Order 2020+ version (Picture B)
Right-hand drive Prados may differ — contact us with a photo before ordering.

Picture A( choose 2010-2019)

Picture B: (choose 2020+)

Benefits

✅ Smooths out harsh KDSS behavior on and off-road.
✅ Helps fix or prevent KDSS lean after lifting.
✅ Improves ride comfort on uneven pavement or washboard trails.
✅ Lets you choose between “comfort” and “sport” handling modes instantly.
✅ Restores system balance naturally through real-world driving.

Included

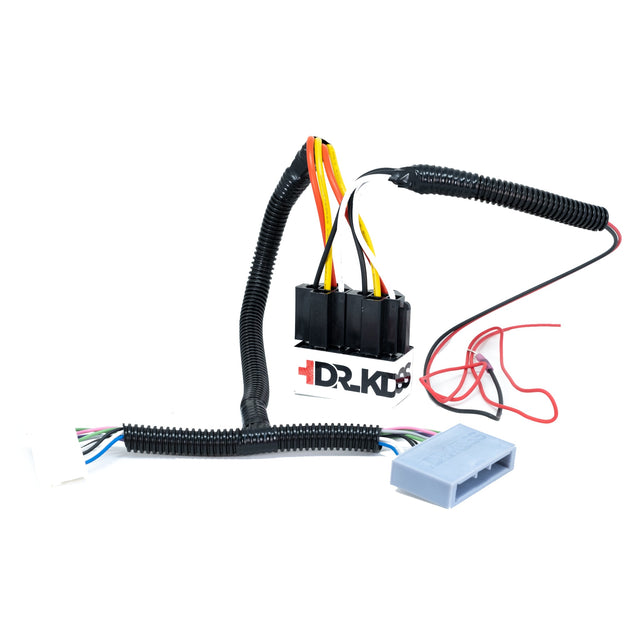

• (1) KDSS Control Harness (OEM connectors, color-matched wires, 3D printed housing)

Real Talk

• If you can add it to cart, it’s in stock.

• 20% restock fee applies (unused parts only).

• Every harness is built in-house and QC-tested before shipping.

• Shortage of OEM parts from Japan means restock times vary — get it while it’s available.

• Built for drivers who actually tune their setup — not just lift and forget it.

Bundle and Save

Complete the Kit with our KDSS Harness Combo - Bundle incudes:

✅ KDSS Control Harness Kit – Plug-and-play solution for managing your KDSS system.
✅ Factory Fit KDSS Dash Switch – OEM-style switch for a factory look and easy operation.
✅ Fuse Box Cover – Allows for a clean installation while protecting your connections.
