Kdss front sway bar billet clamps (pair)

DR KDSS Front Sway Bar Billet Clamps (4Runner)

Overview

If you were to buy one product from DR KDSS, this would be it. The front sway bar billet clamps are by far the most important part offered for the KDSS system on a 5th gen 4Runner. These clamps keep the KDSS sway bar locked in place where it belongs, preventing the side-to-side shifting that eventually causes noise, wear, and even damage.

Why You Need It

From the factory, Toyota uses rubber straps and pressed-on metal straps to keep the sway bar centered. That works fine for street driving, but once you introduce off-road articulation, those straps eventually fail. When they do, the sway bar shifts to one side, and the KDSS shock body can make contact with the frame. Many owners mistake this for a bad KDSS shock, when in reality it’s just the bar walking out of position. These billet clamps stop that problem before it starts.

Design & Construction

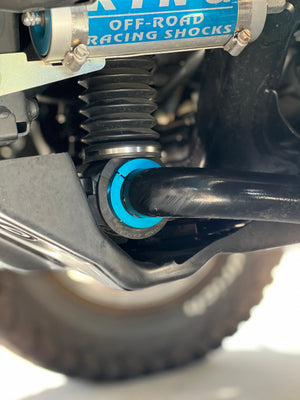

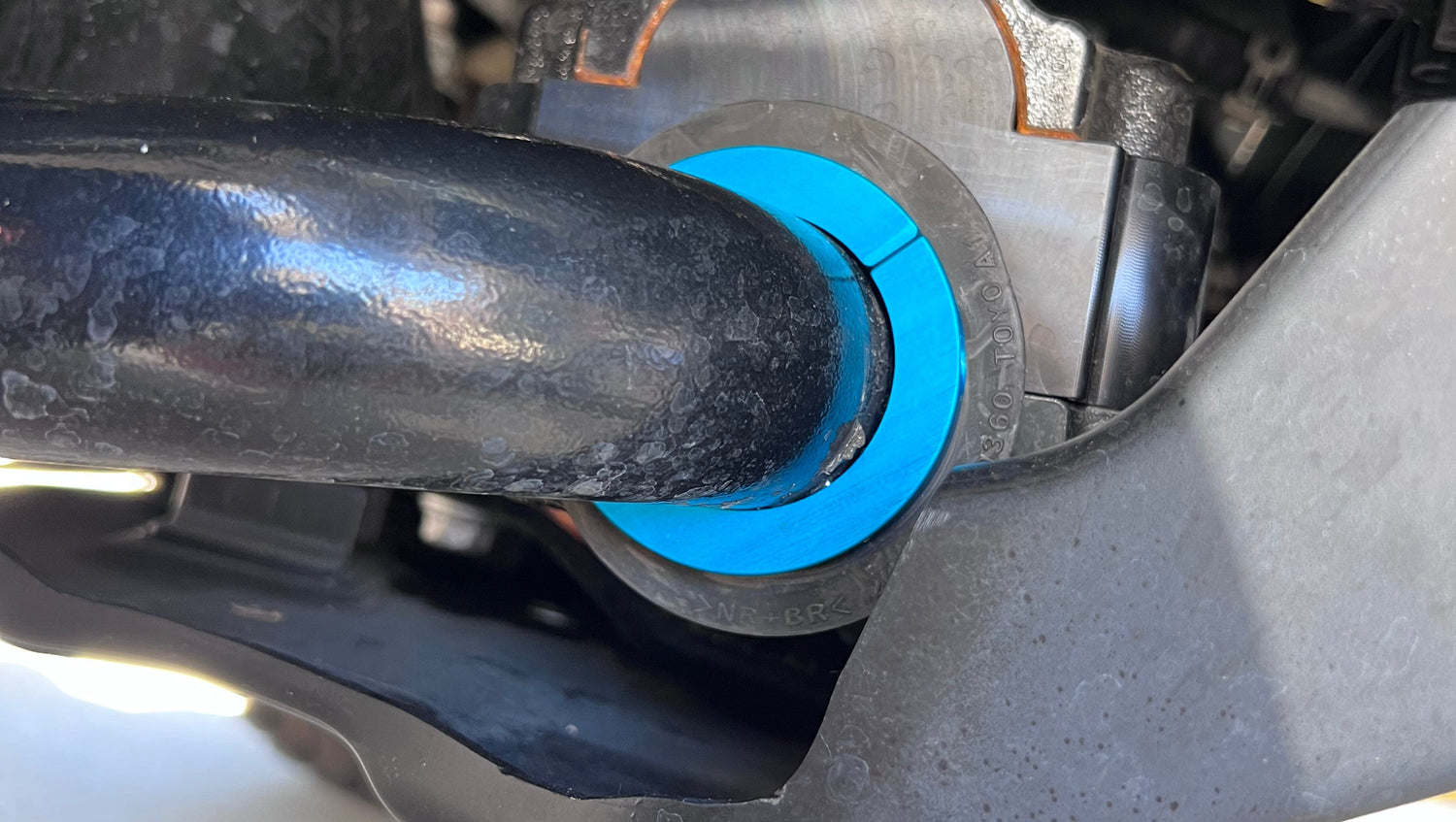

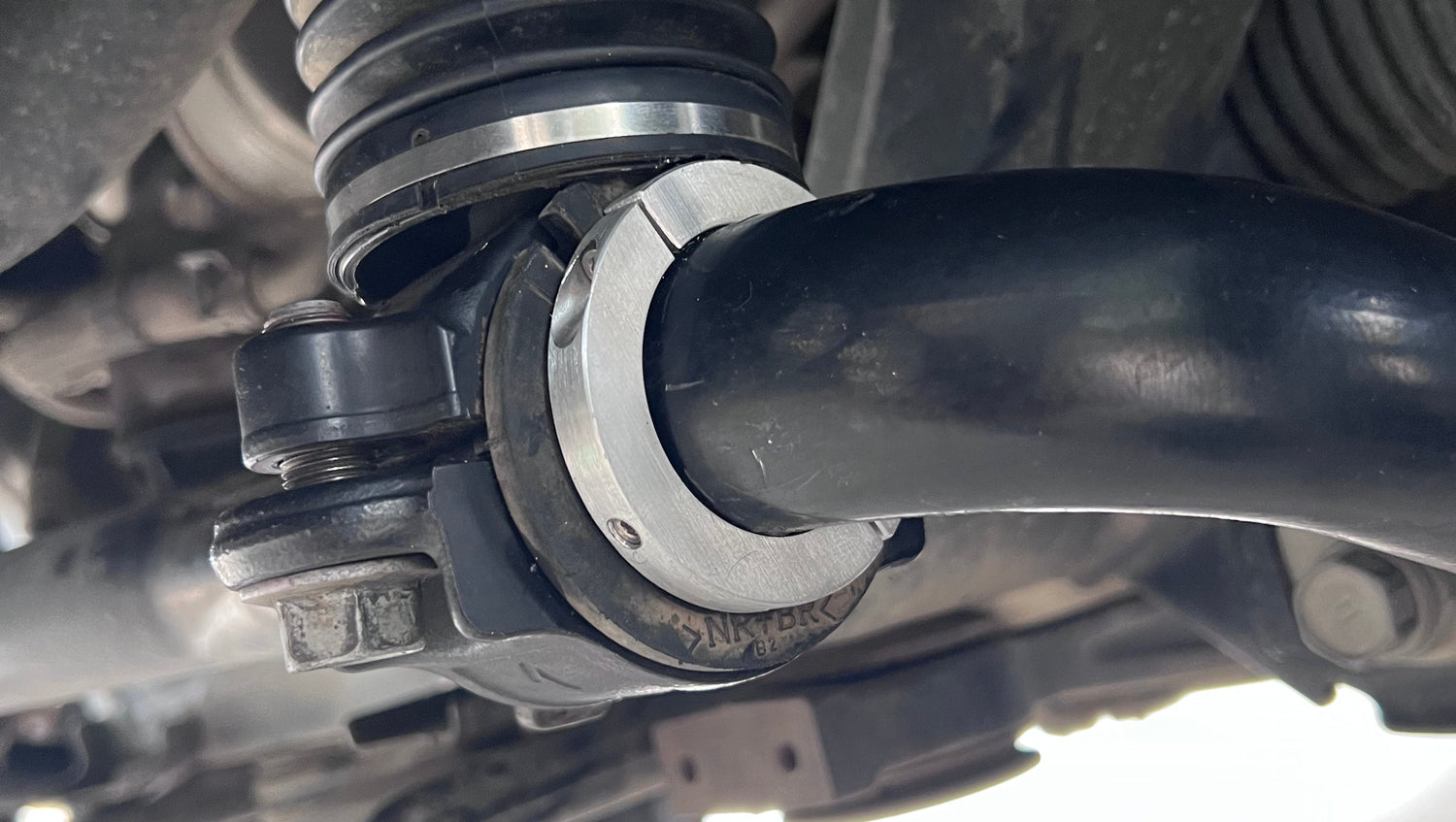

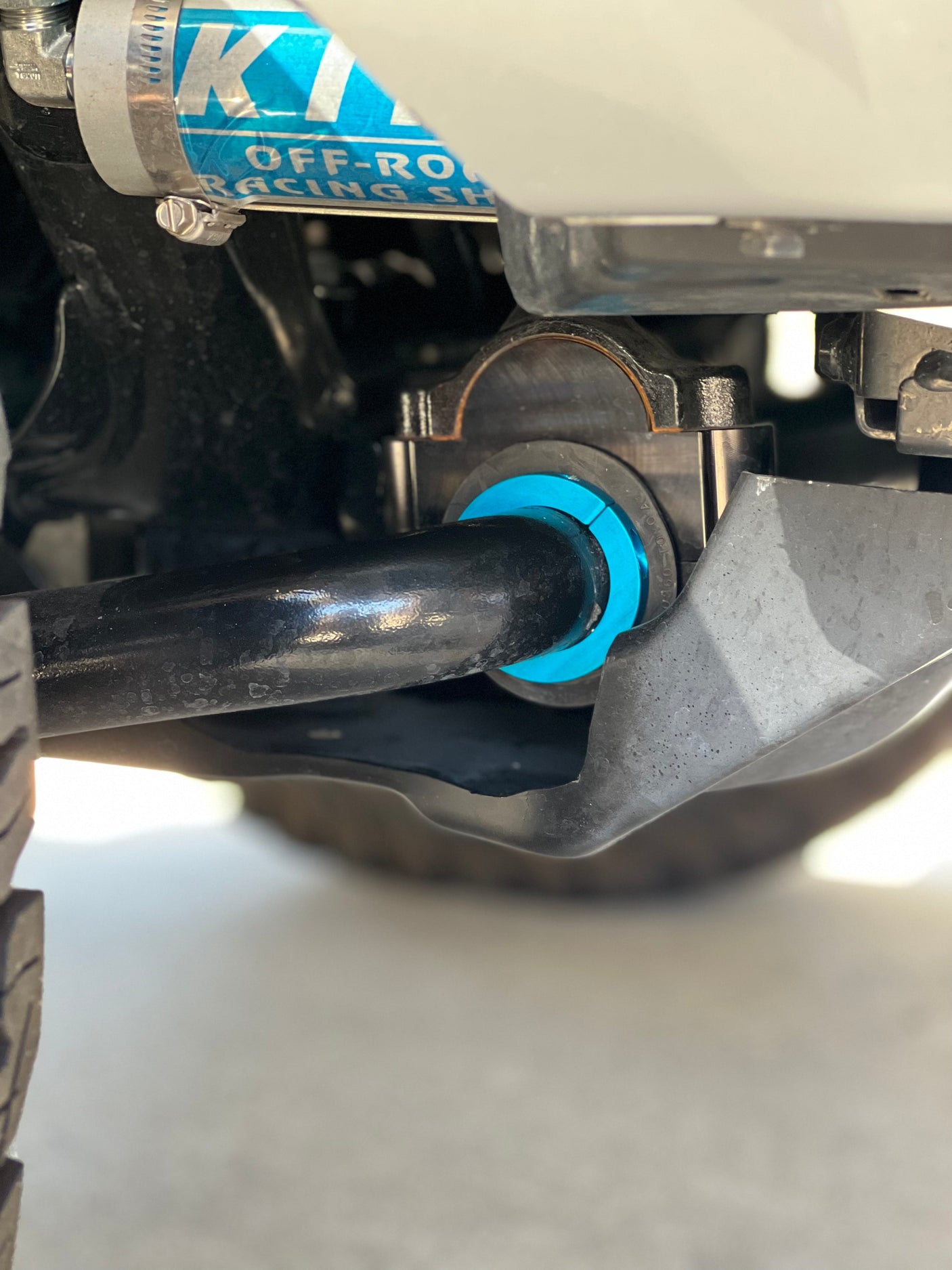

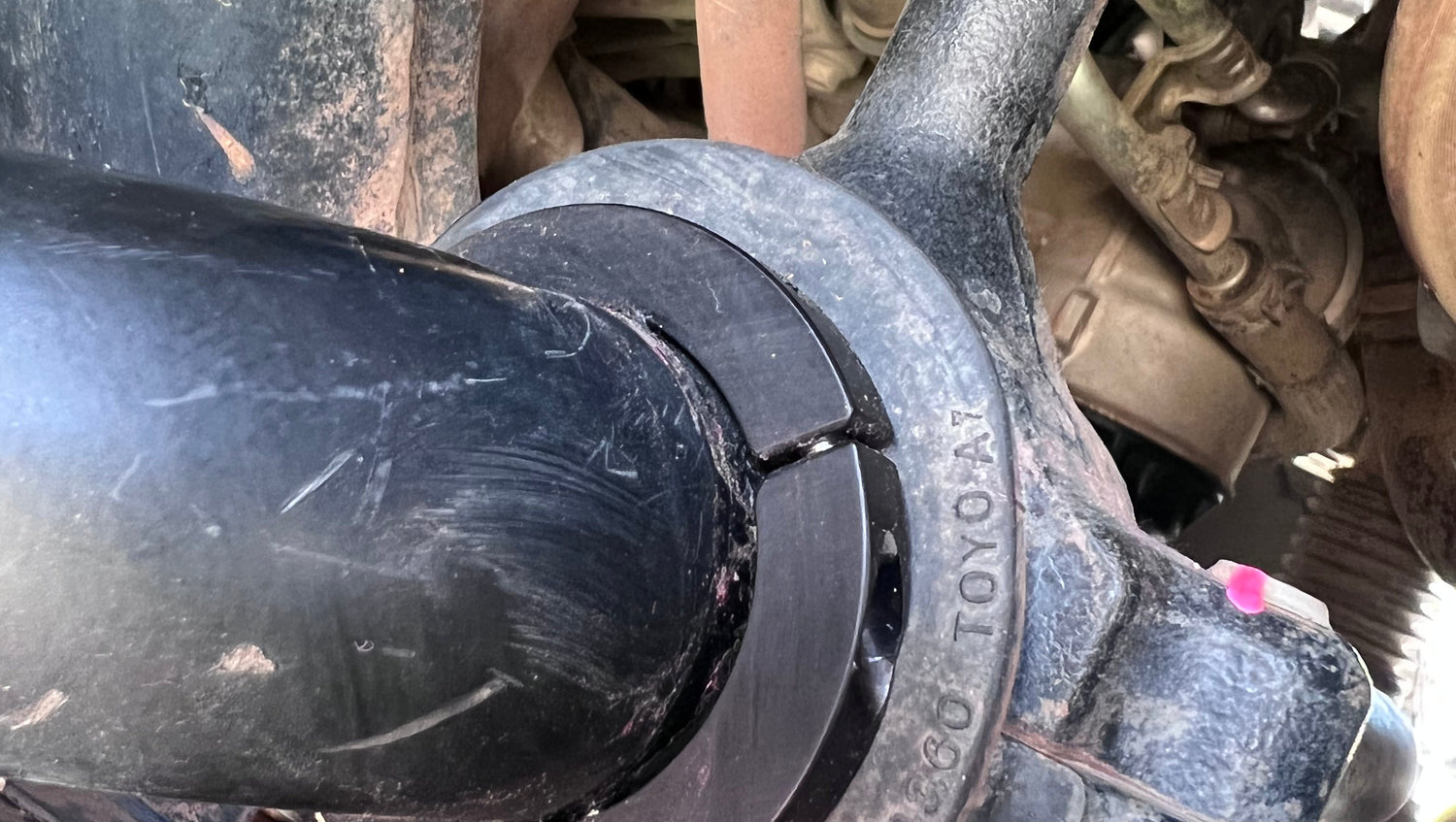

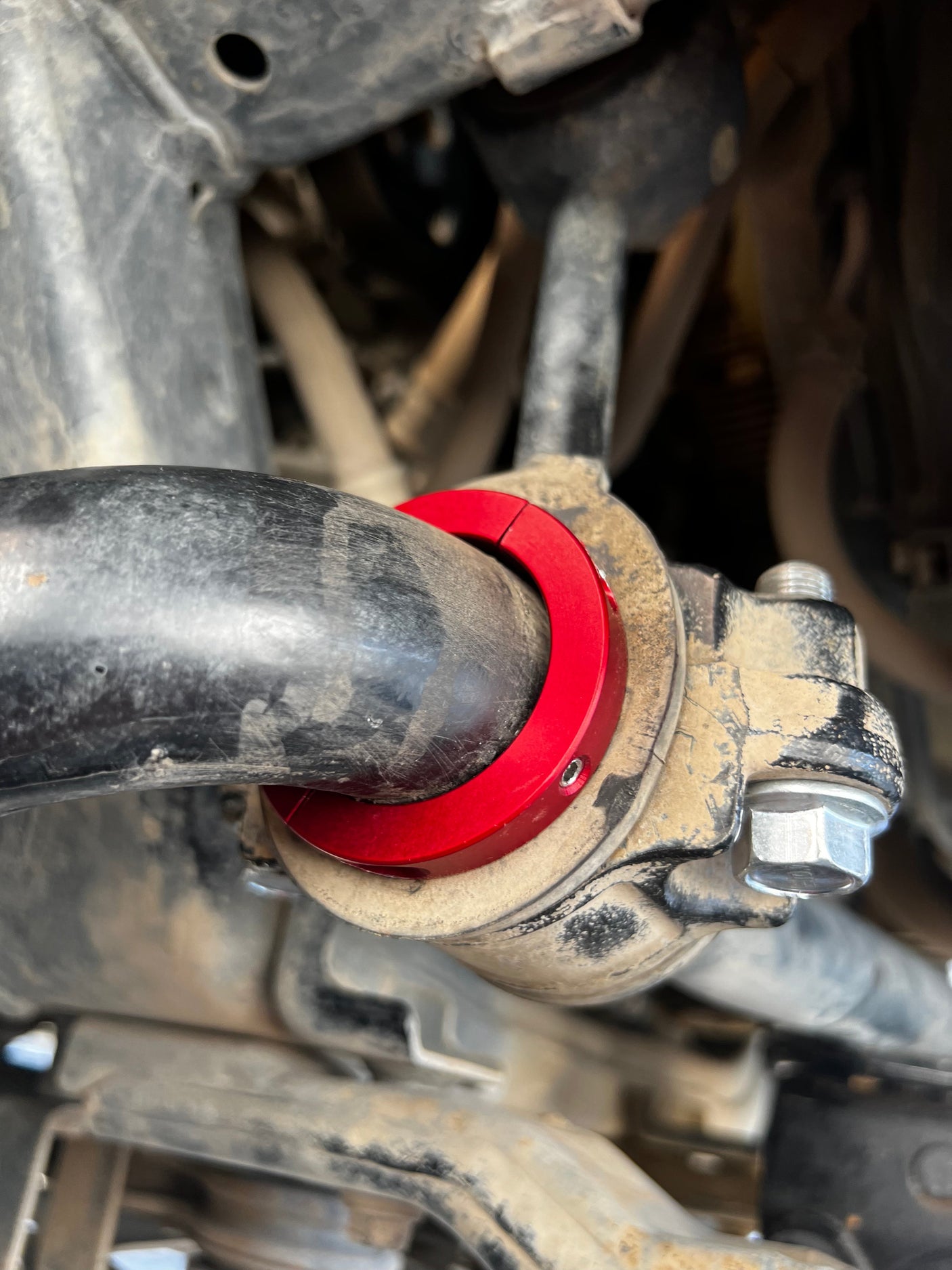

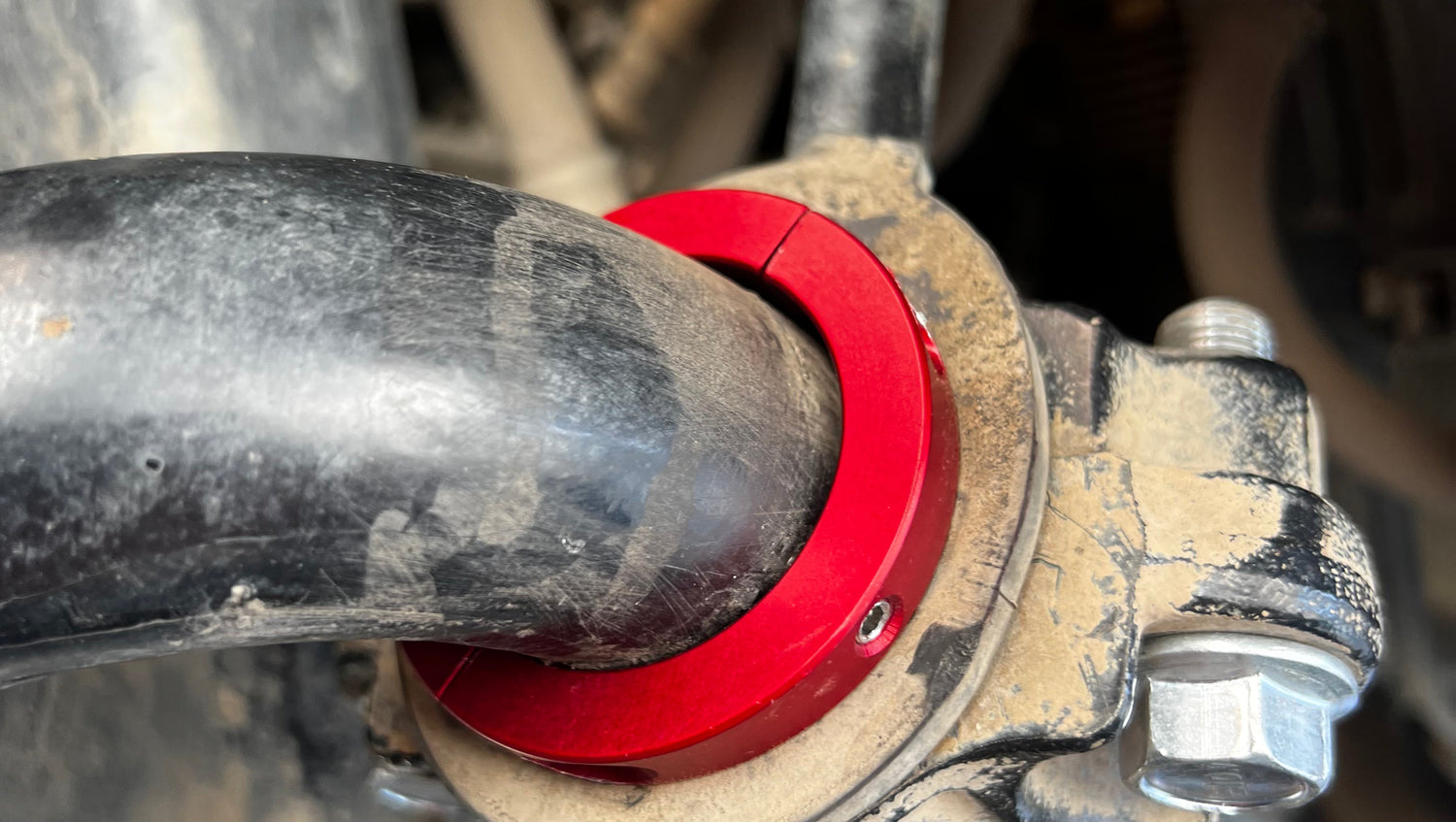

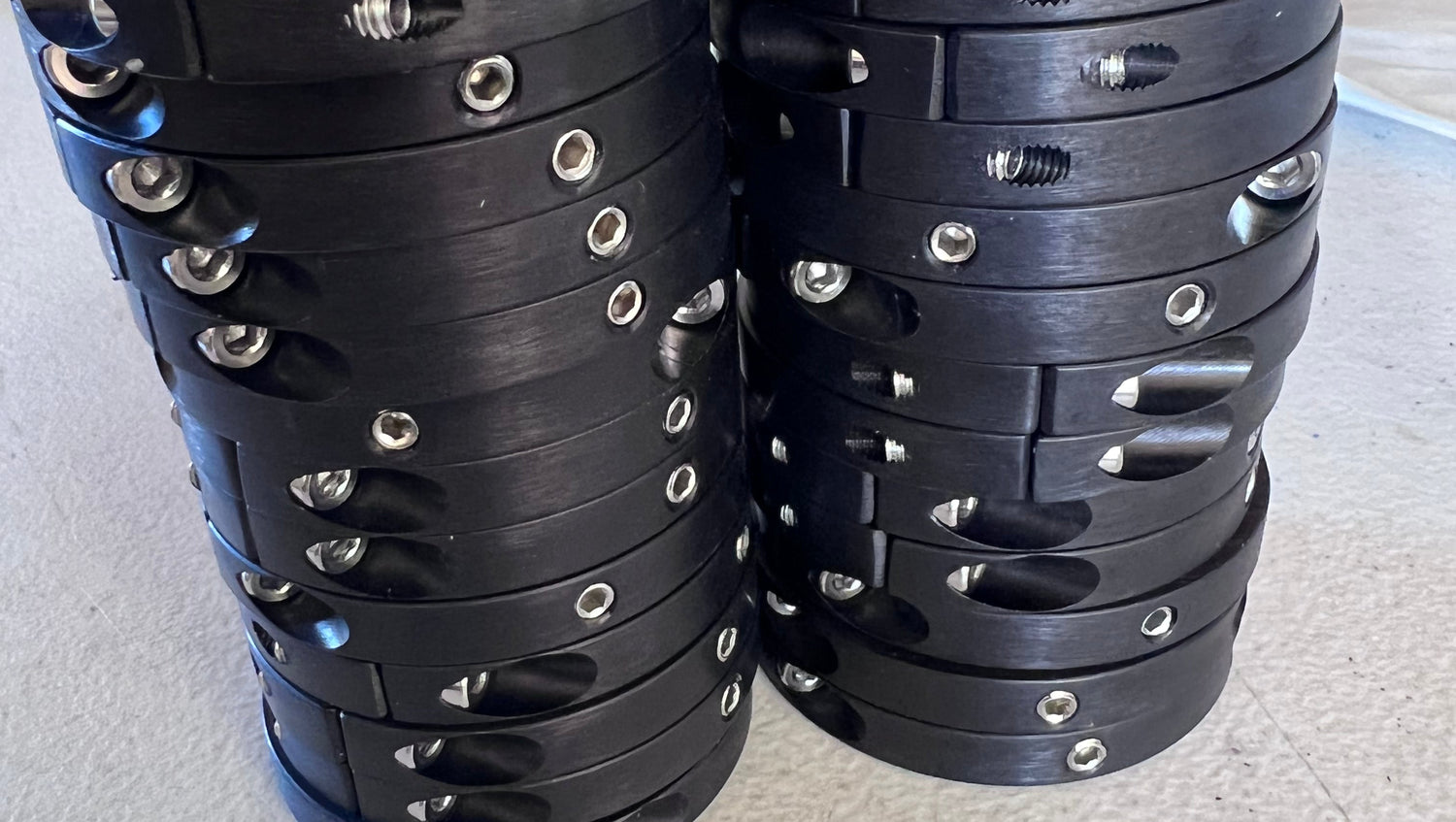

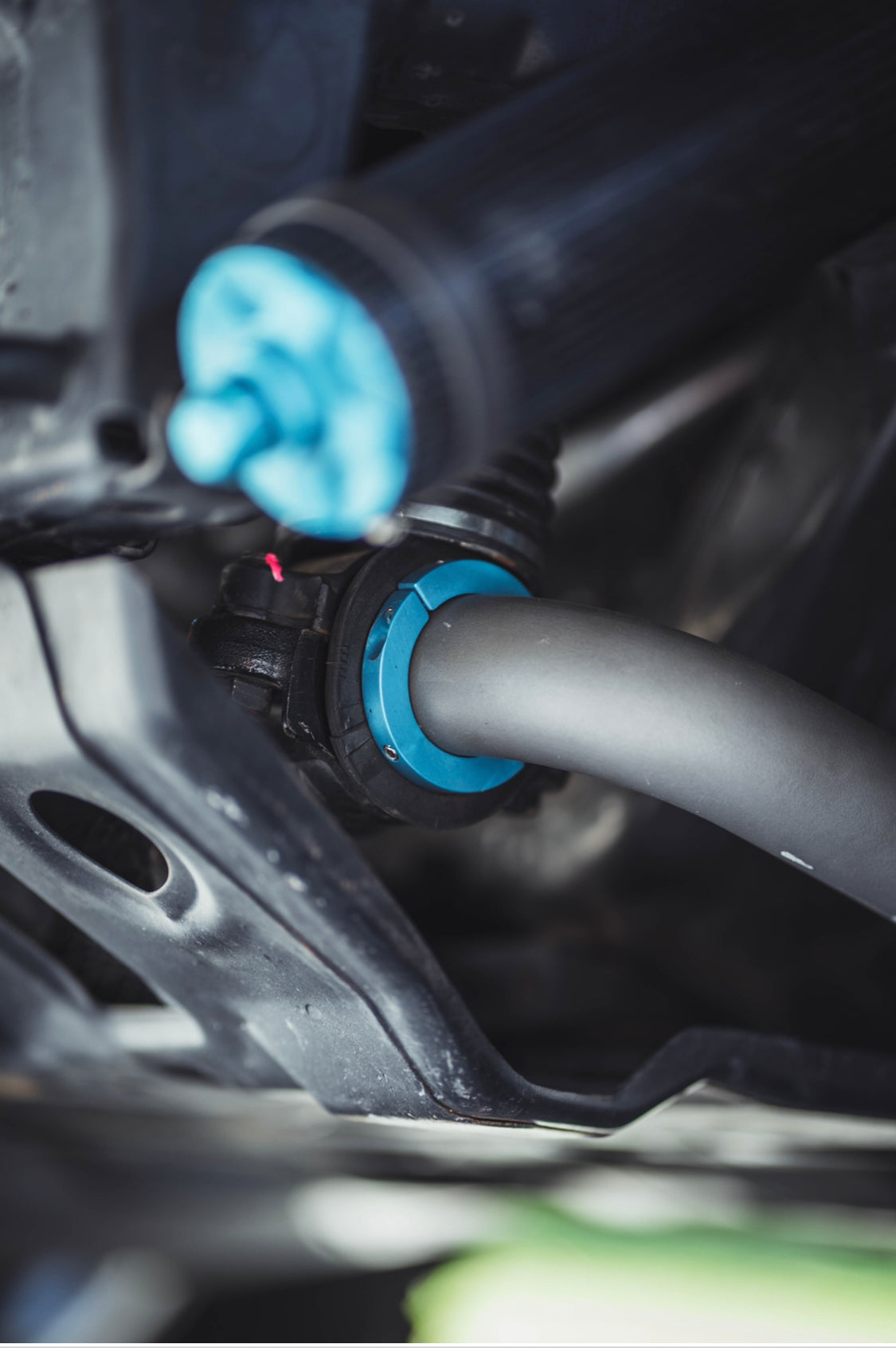

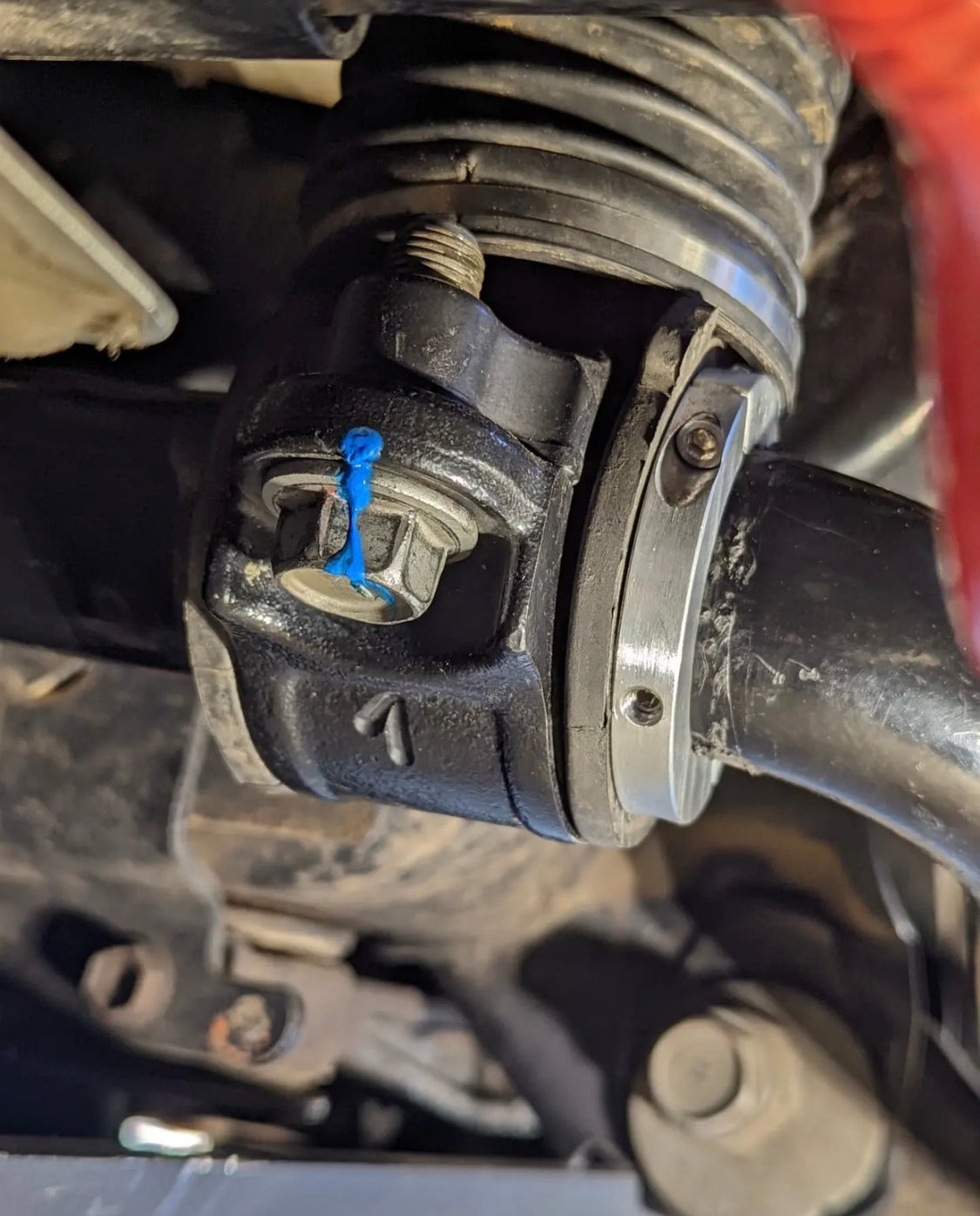

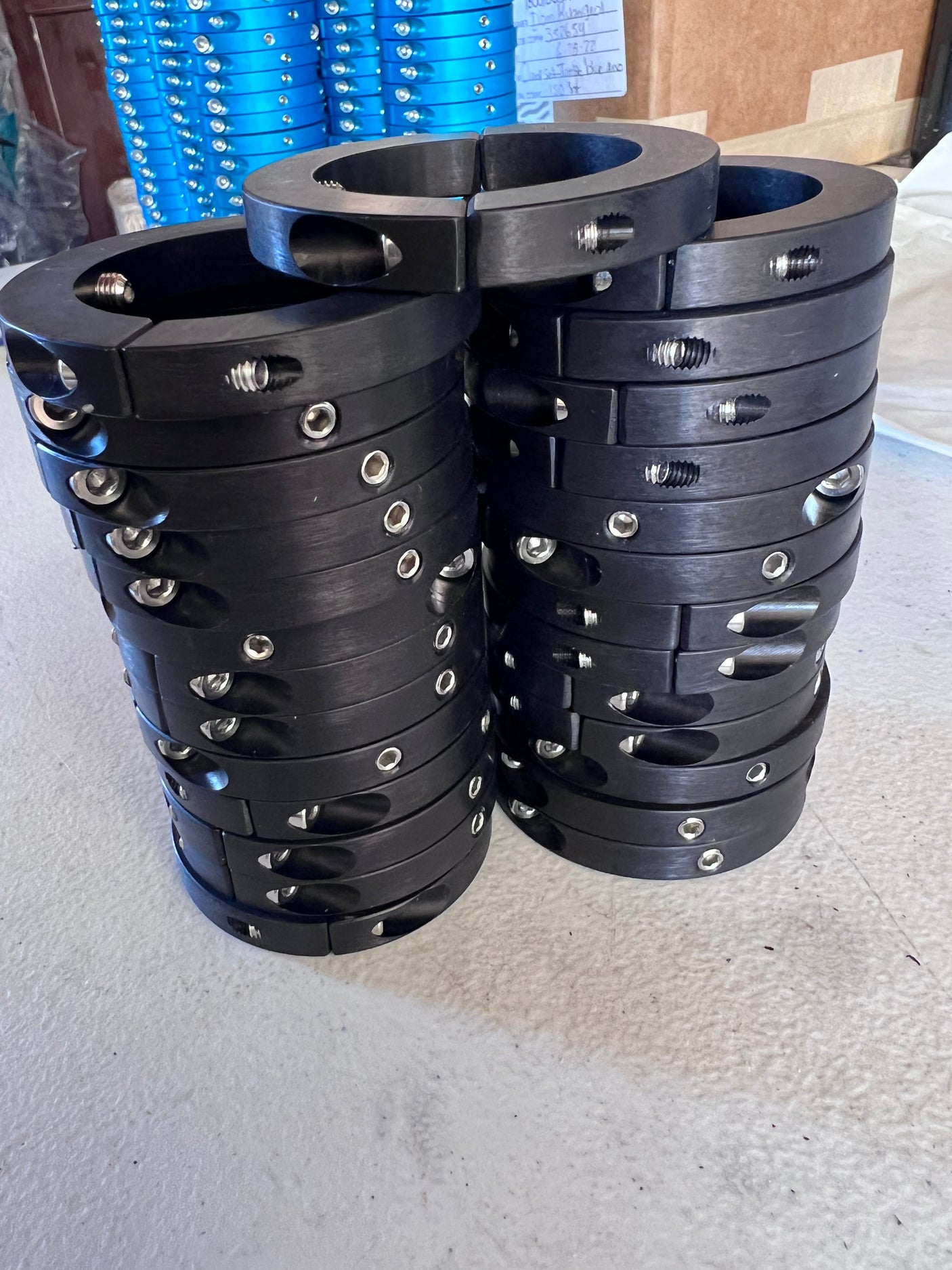

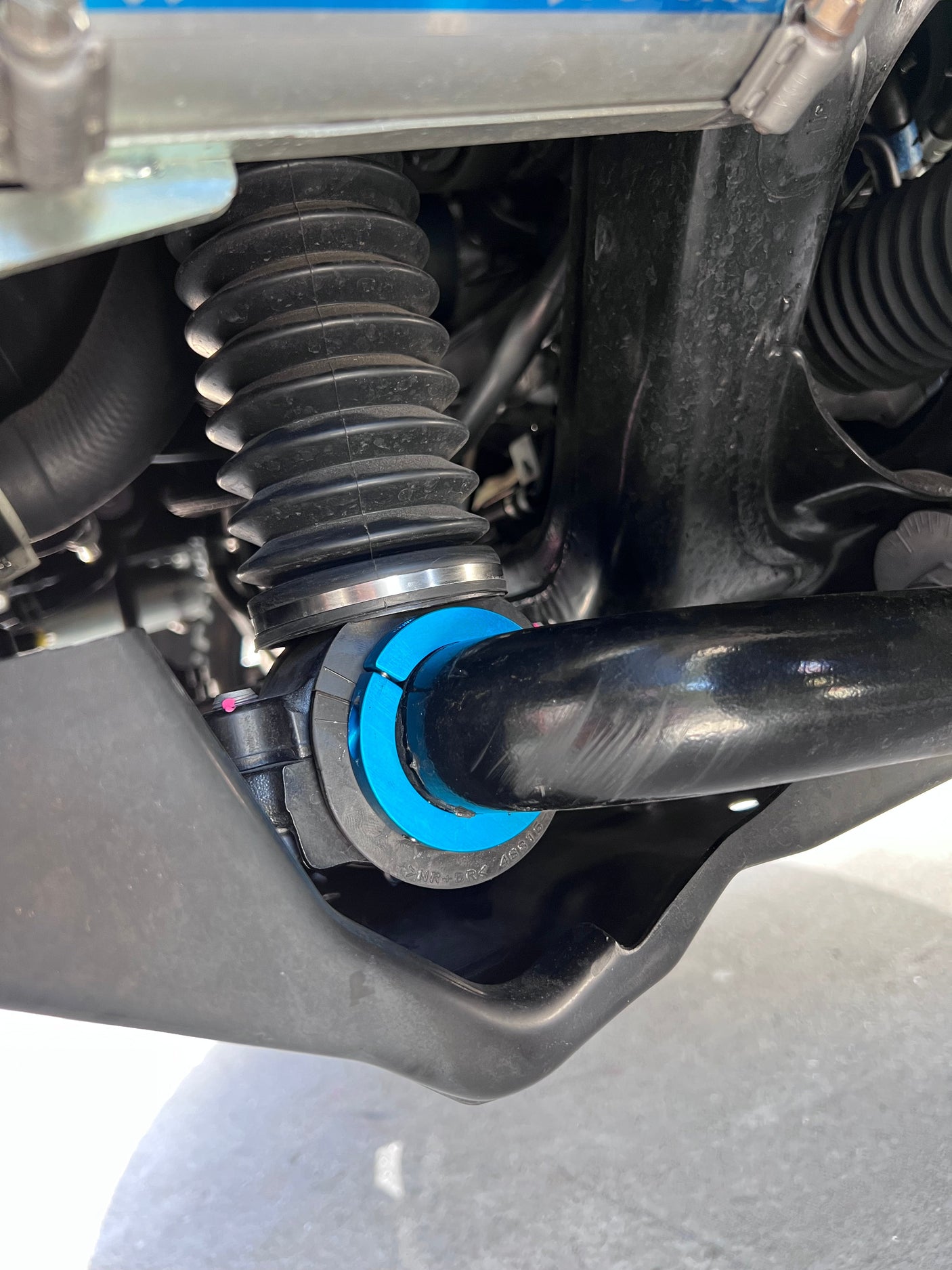

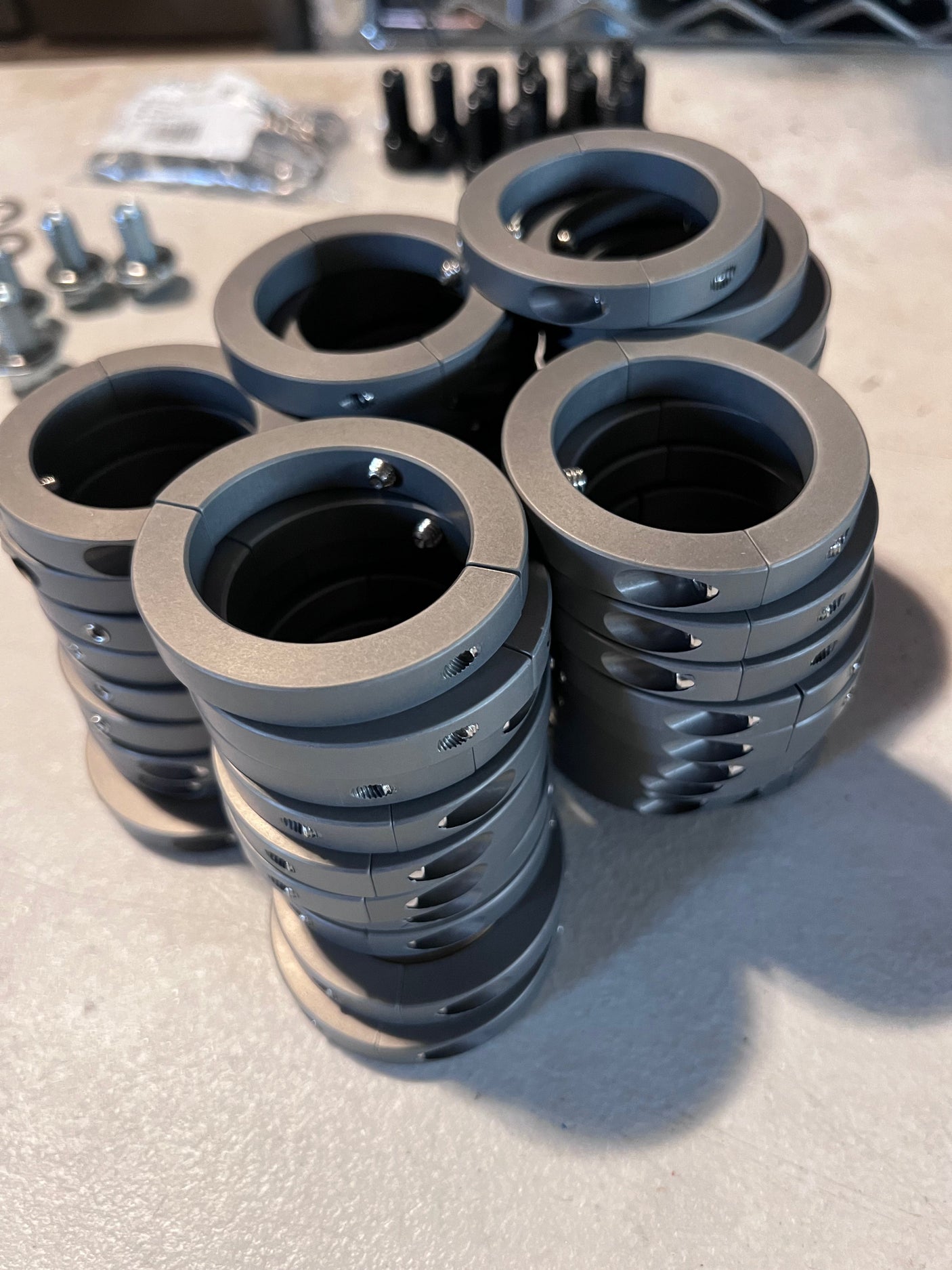

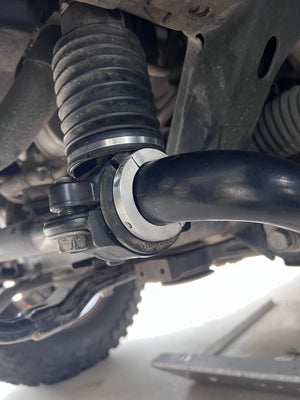

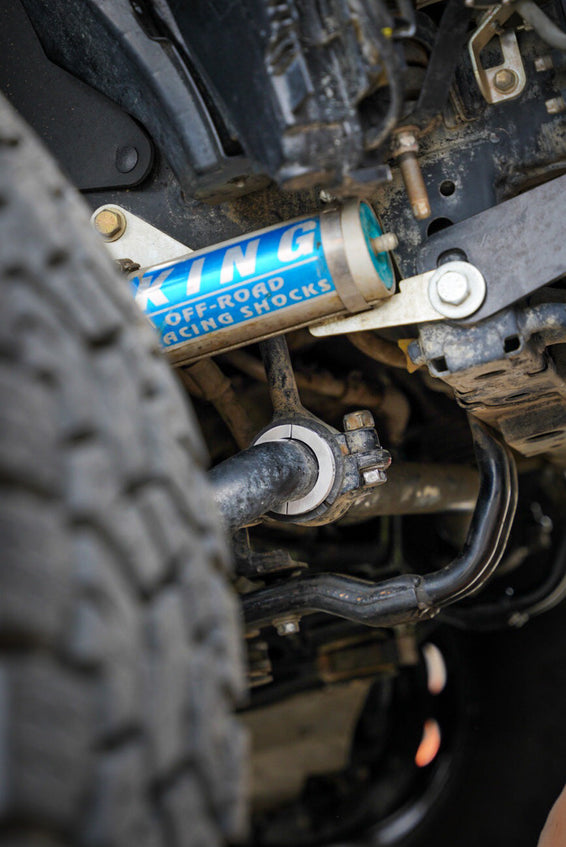

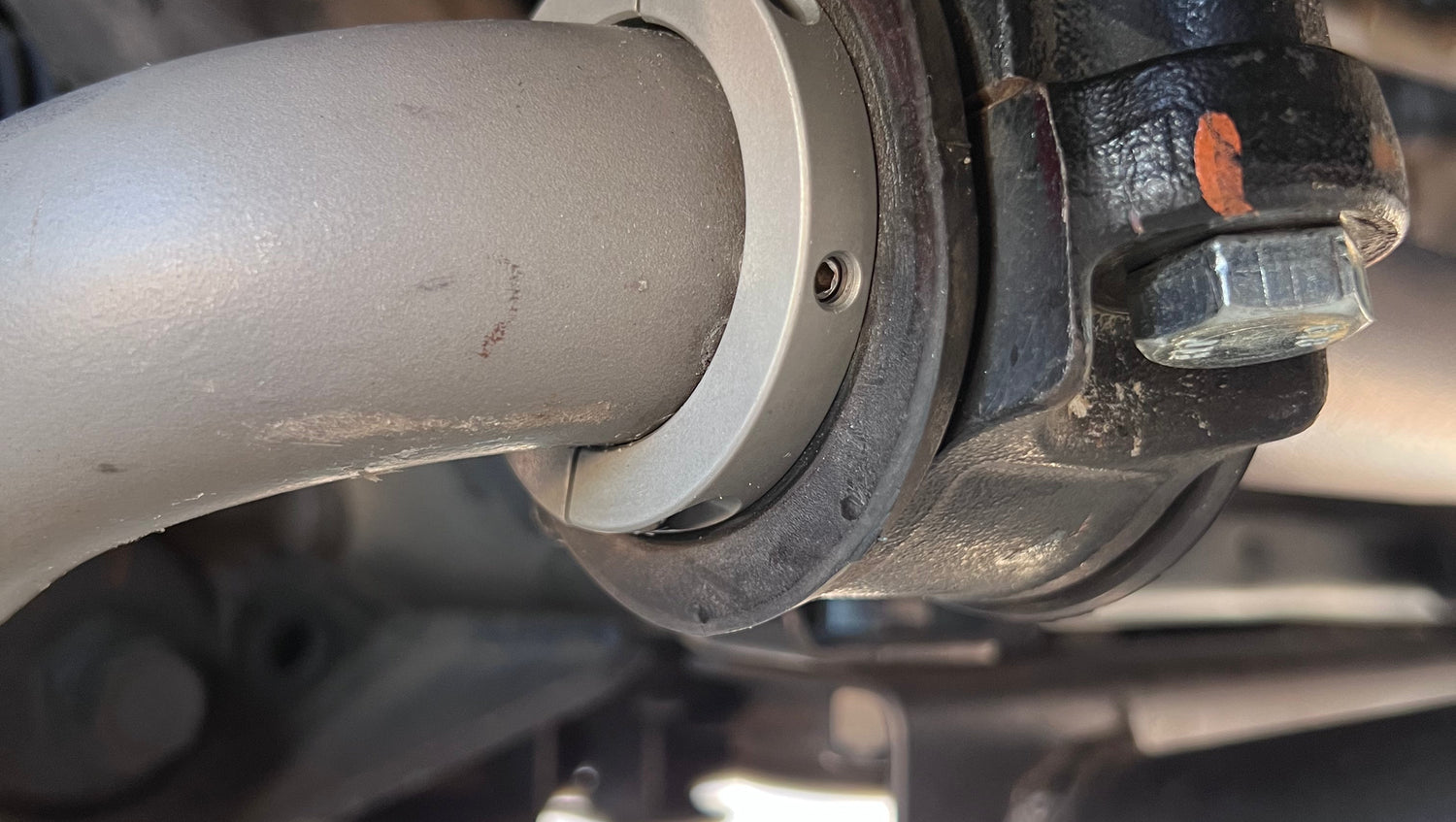

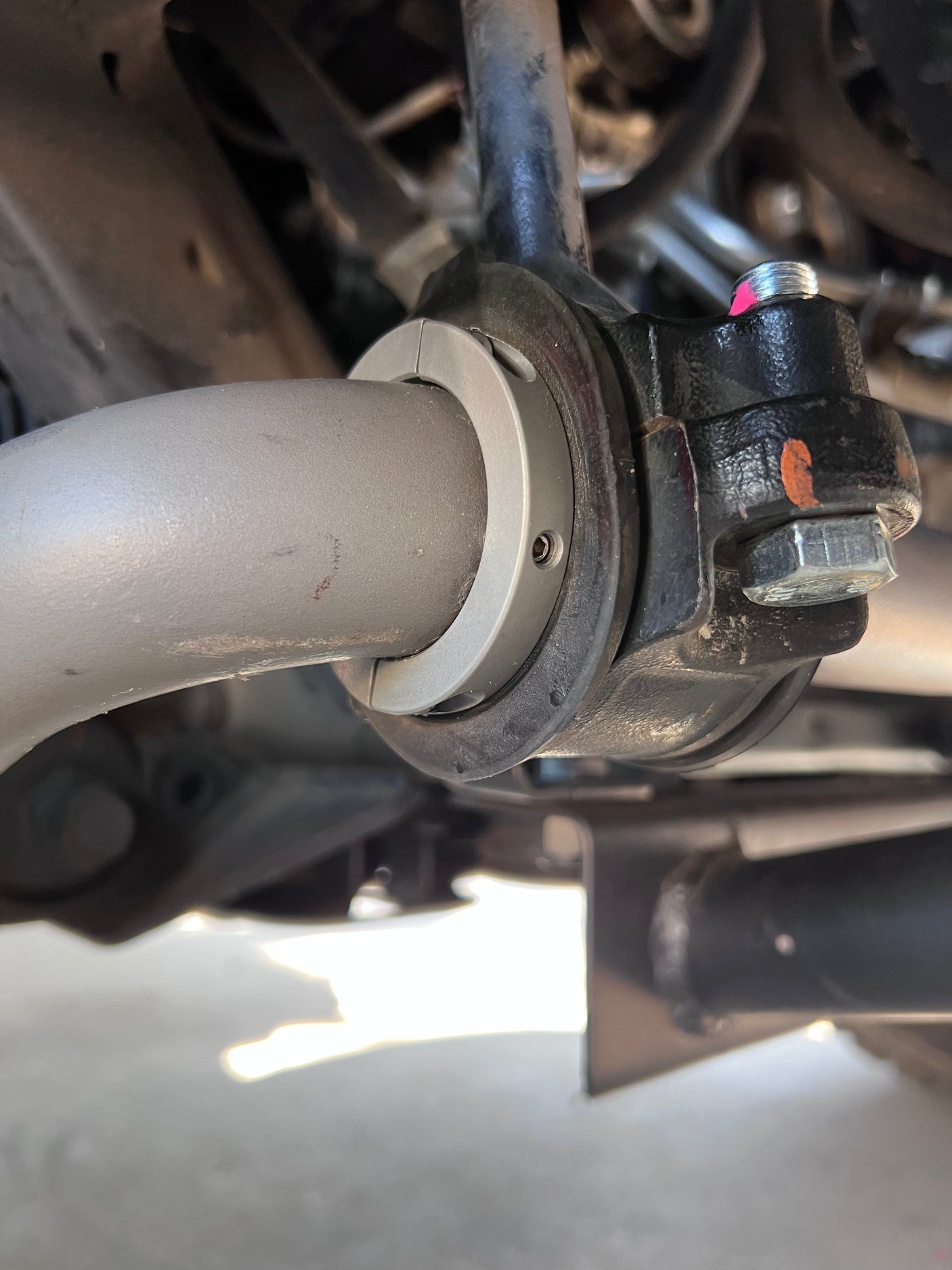

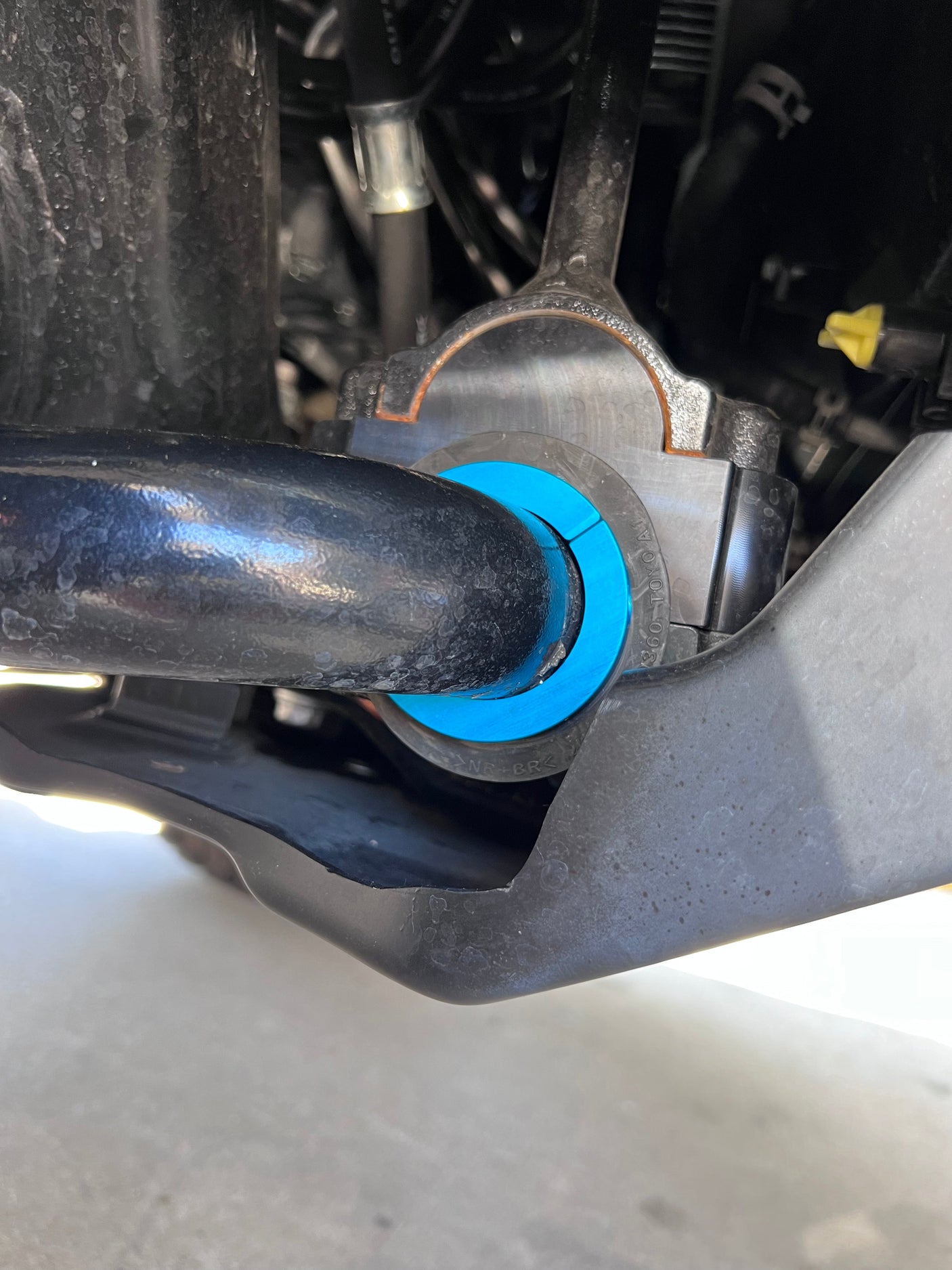

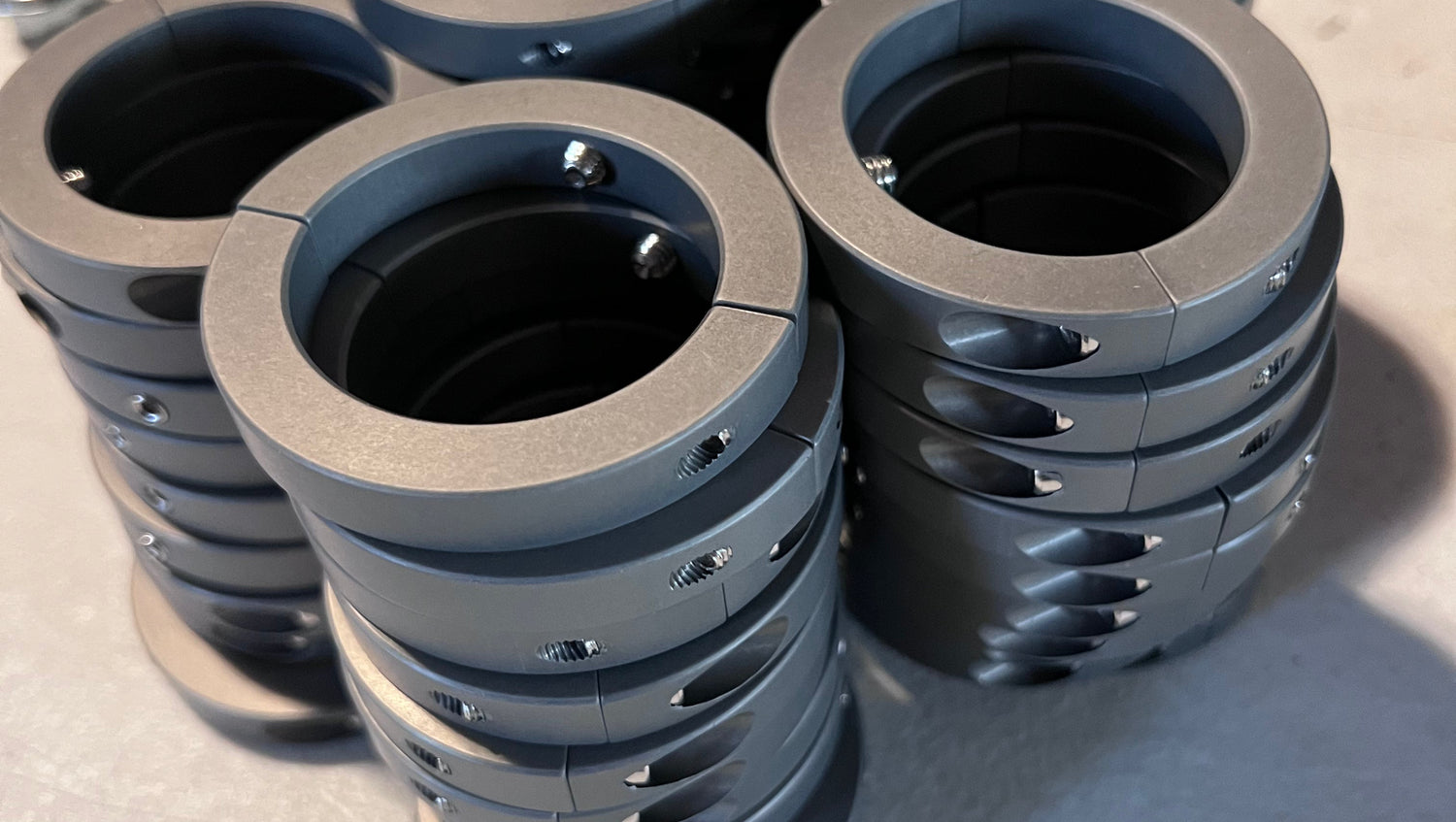

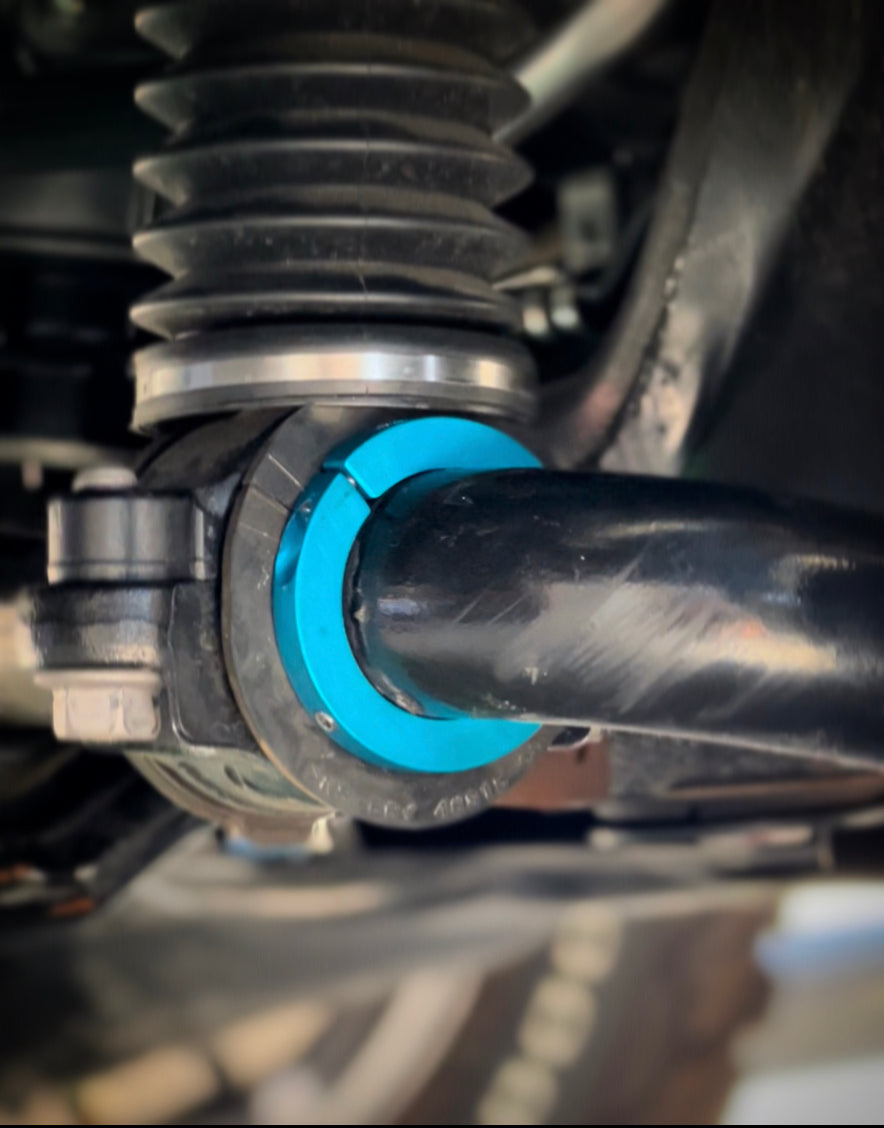

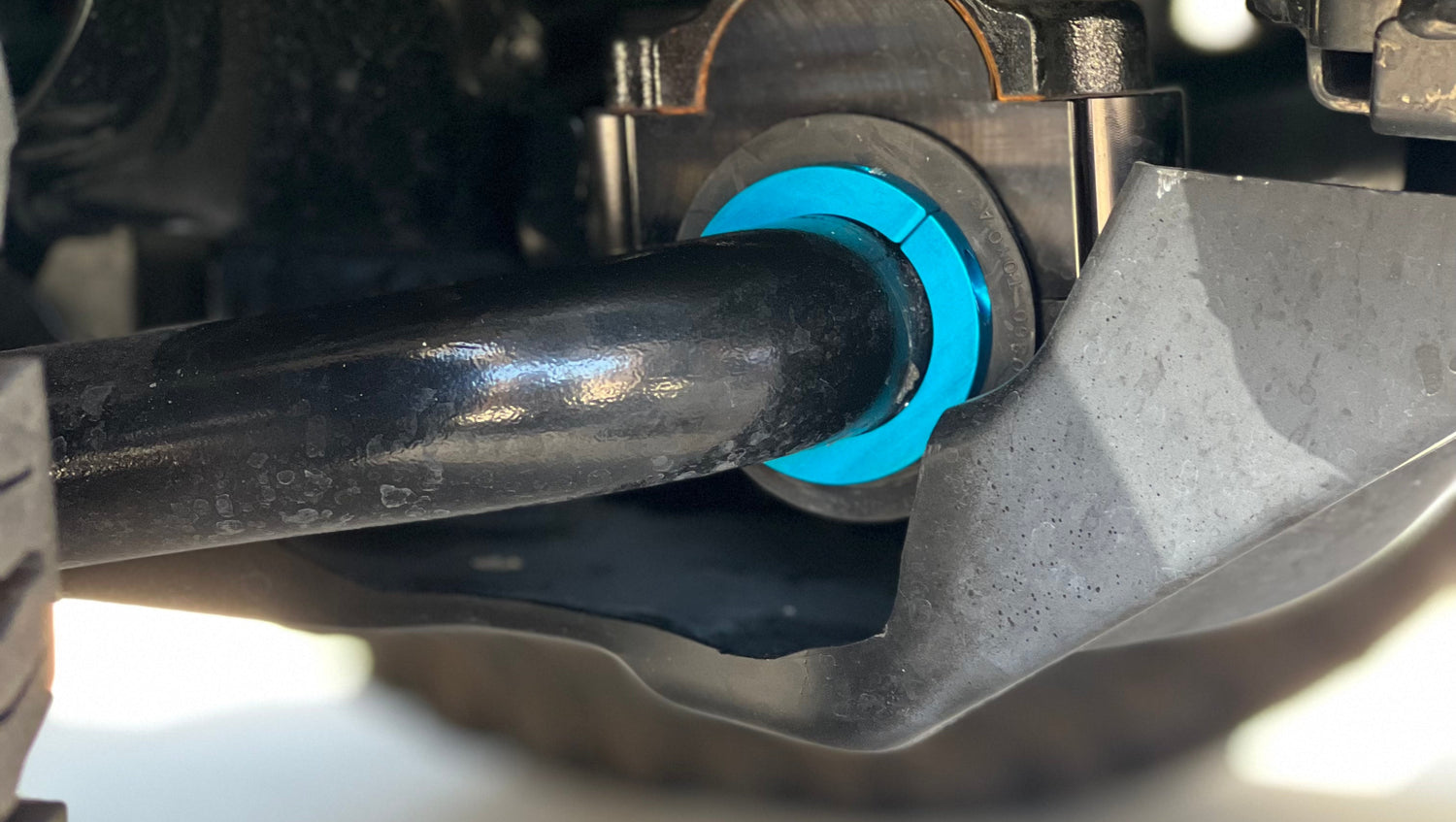

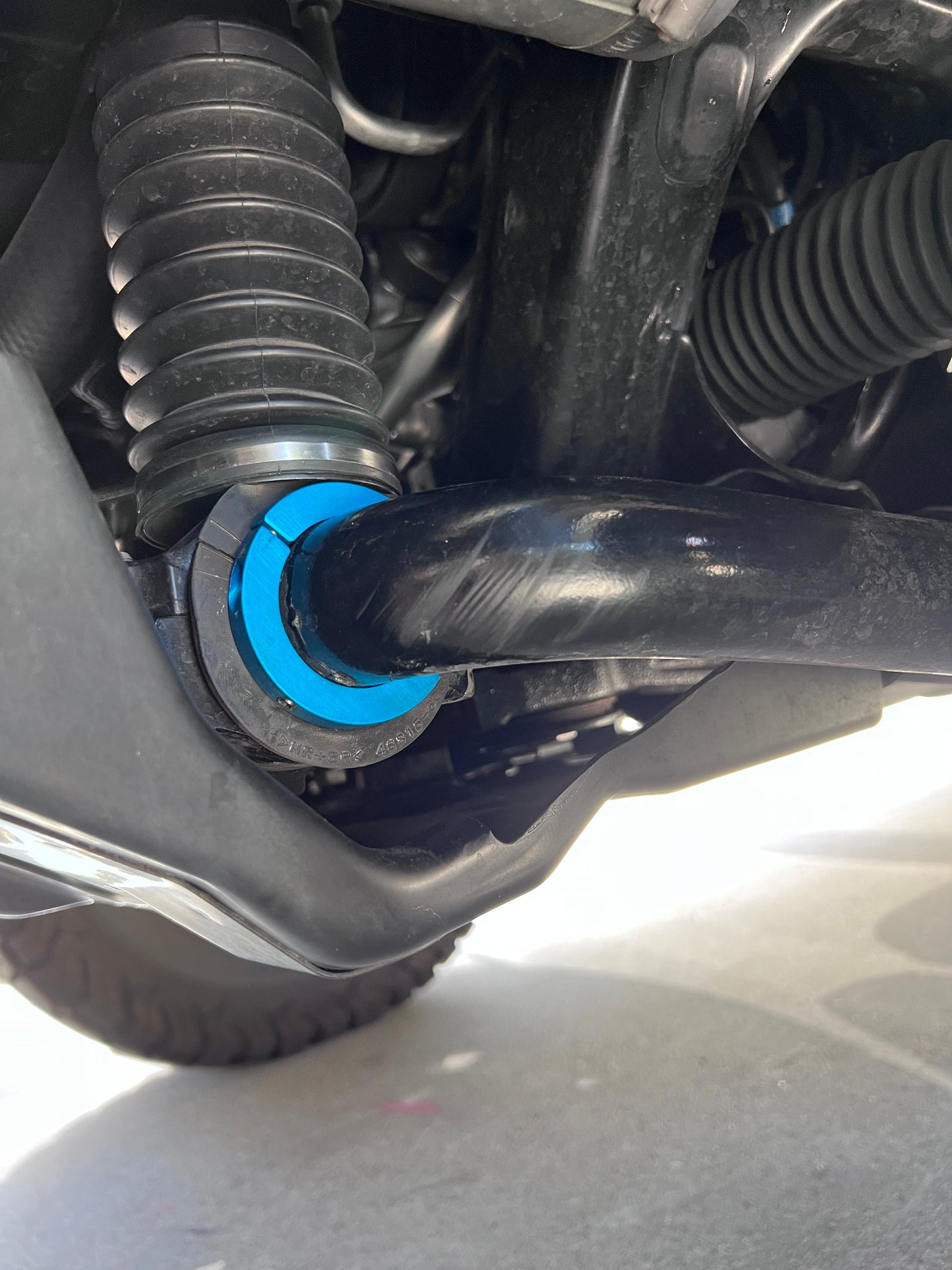

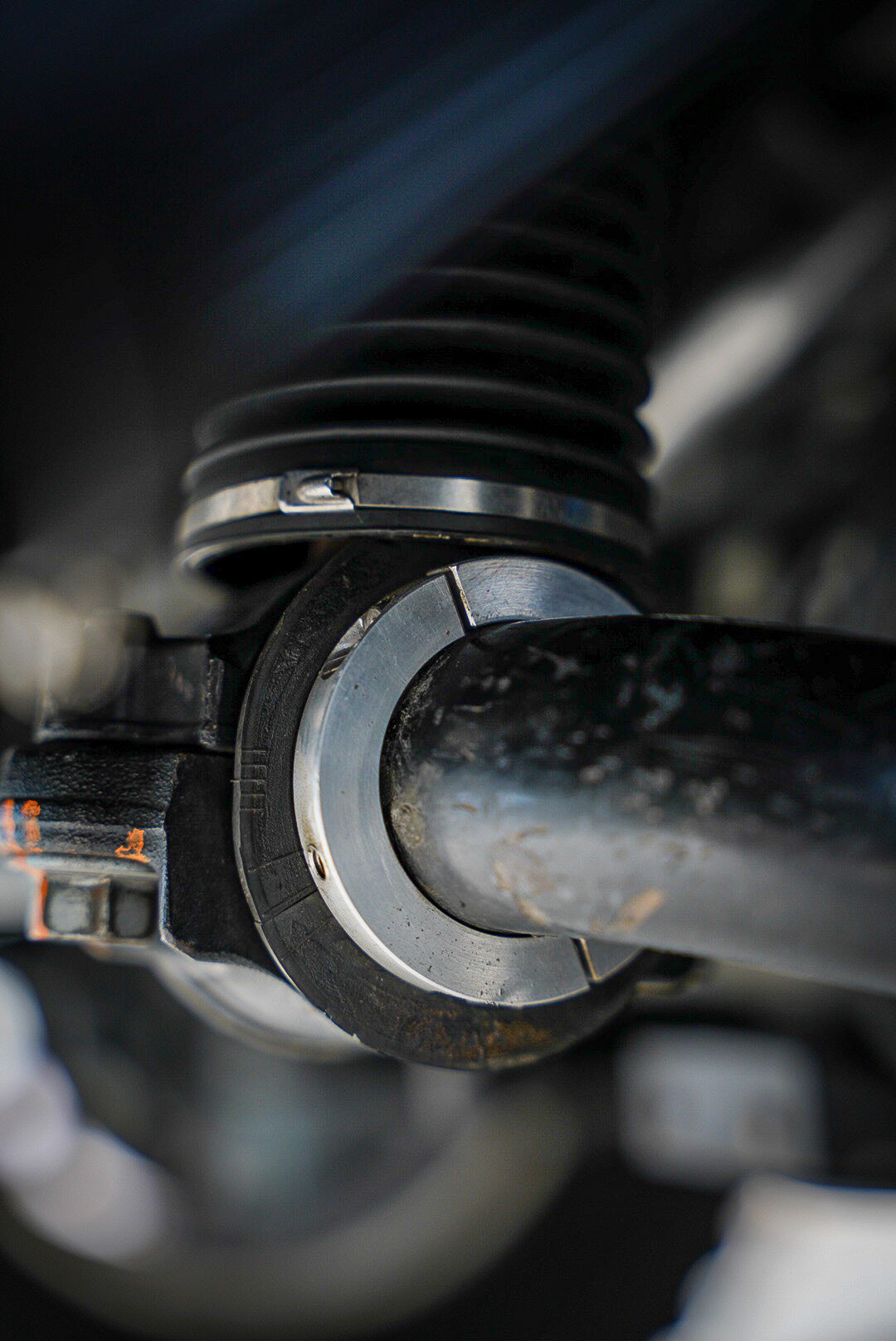

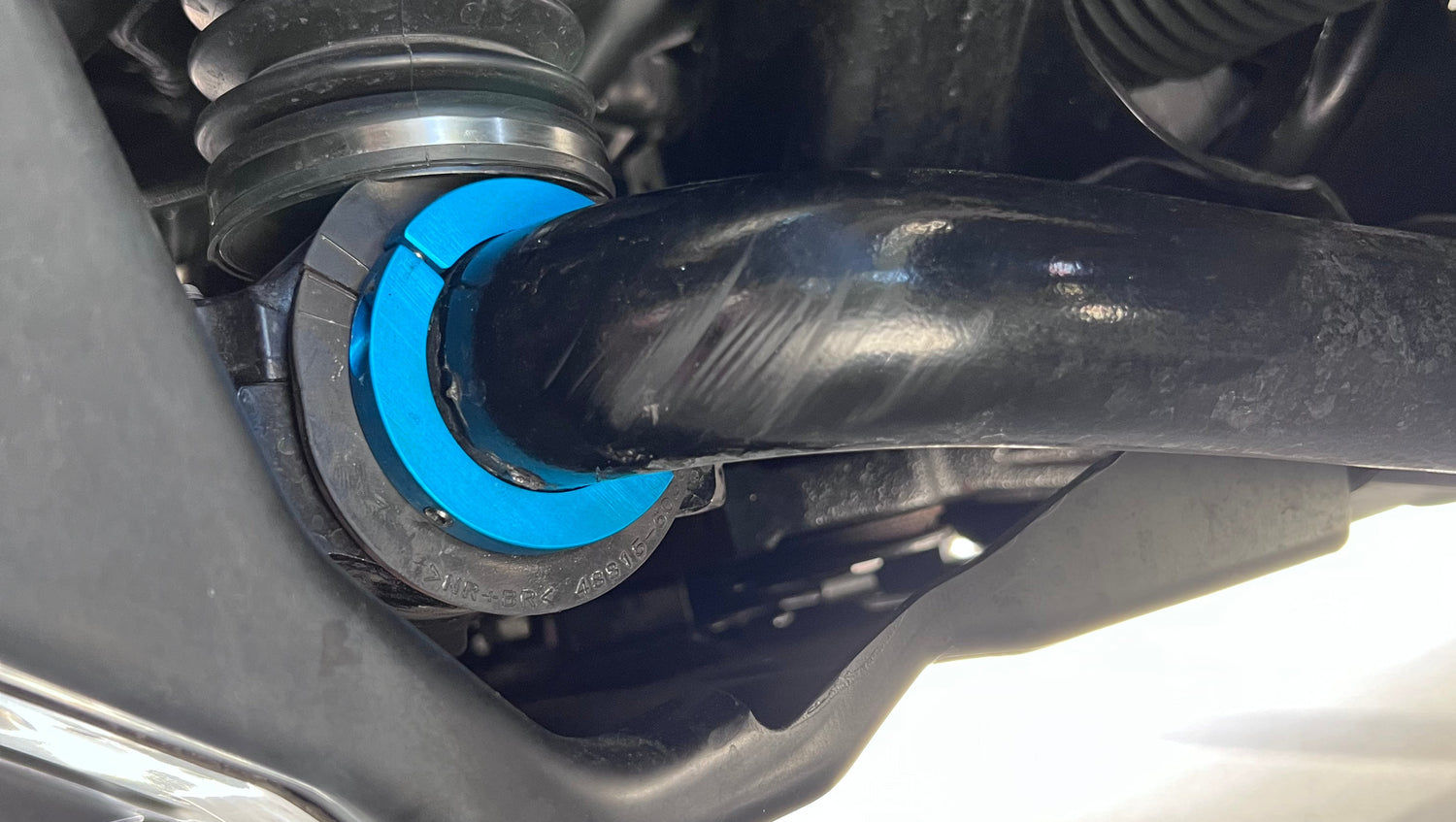

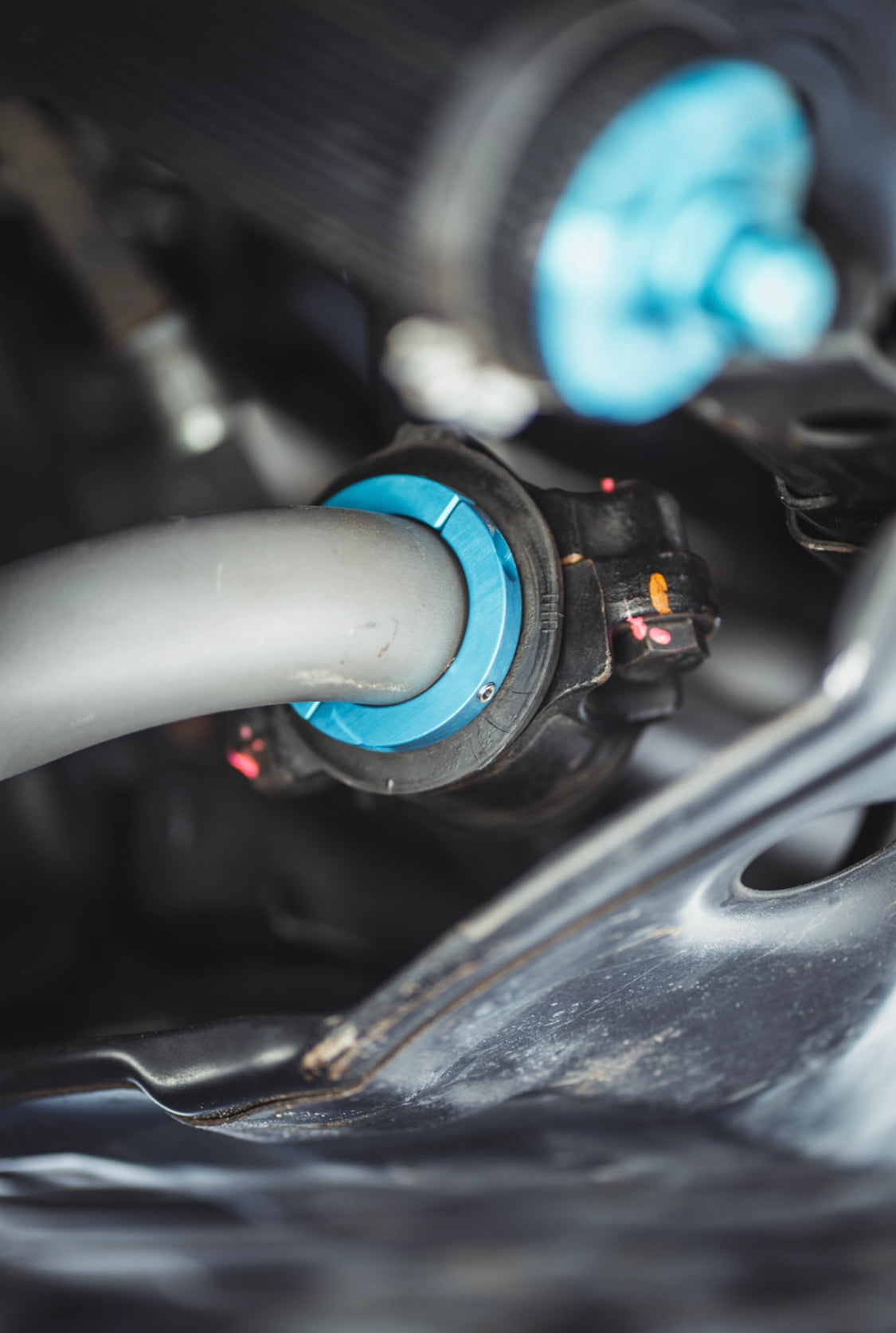

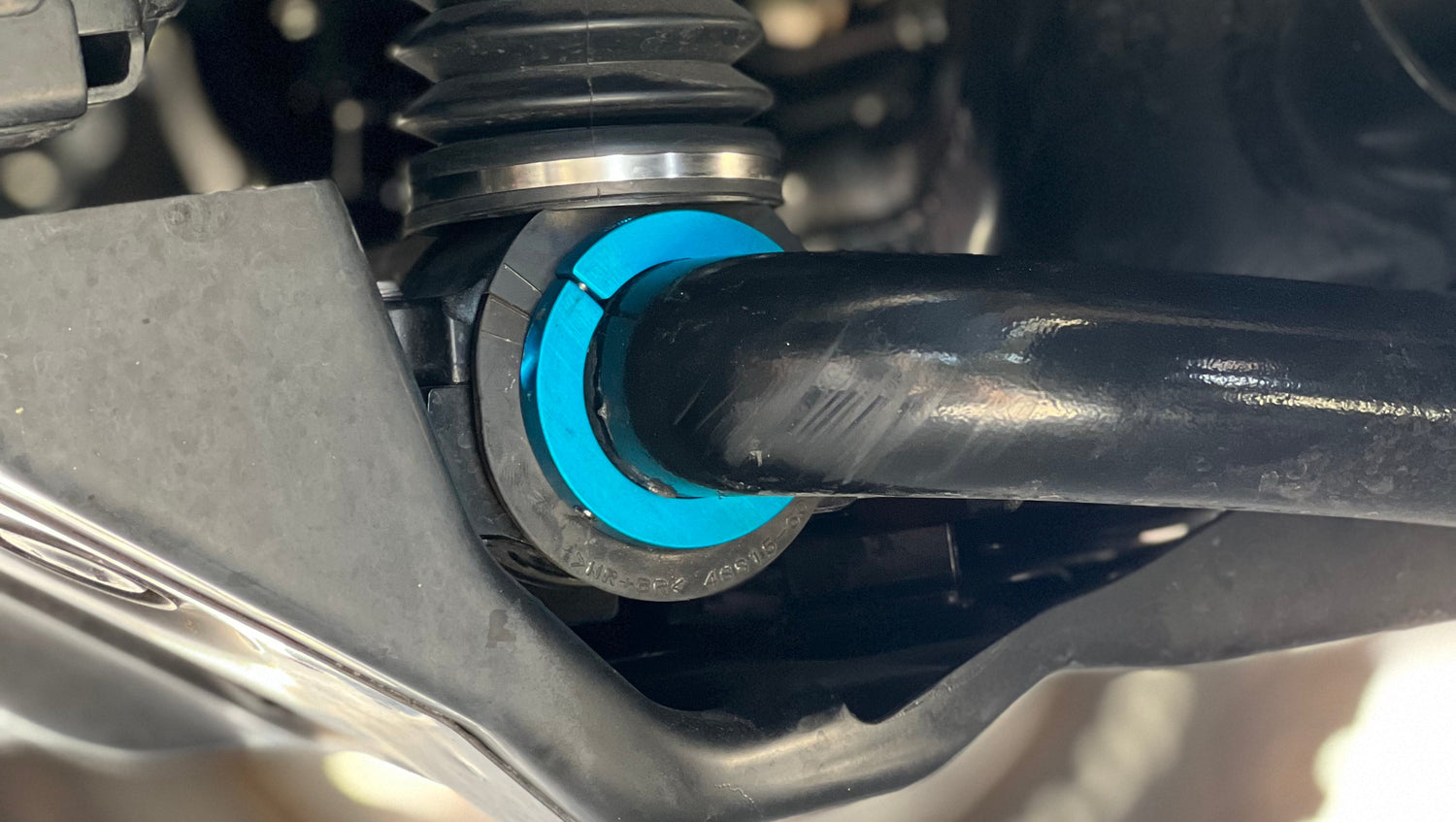

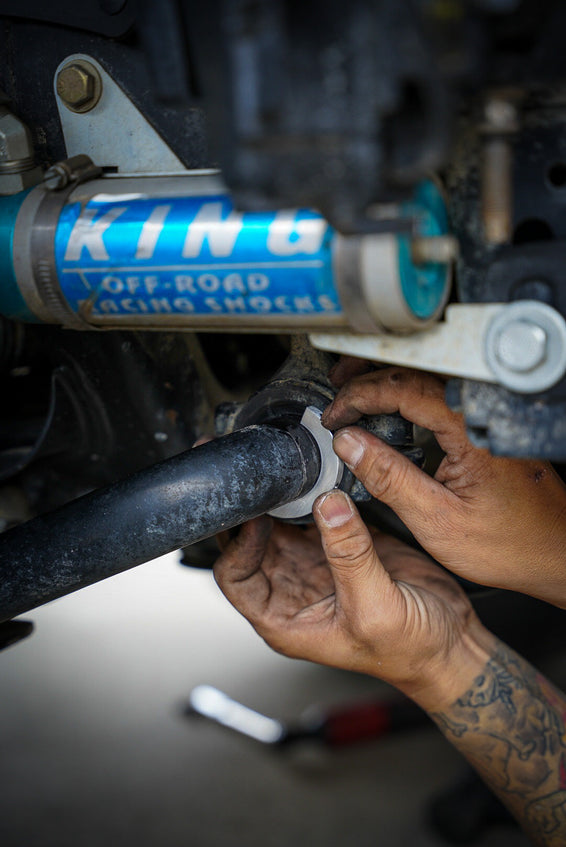

Each clamp is CNC-machined from 6061 aluminum and sold in pairs. Most setups only need one pair installed on the outsides at the bends of the sway bar. Adding a second pair on the inside of the hard link and KDSS shock makes the system even stronger, replacing the weak pressed-on straps with a rigid locking solution. The design also lets you fine-tune the bar’s position, effectively “cheating” the system to center it better than stock.

Real-World Benefits

With the clamps in place, your sway bar stays centered under all conditions. That means:

• No more clunk caused by side shift
• Longer bushing life
• No KDSS shock body hitting the frame
• Greater confidence when pushing the truck off-road

These clamps have been tested over thousands of miles of on- and off-road driving, including harsh terrain like Baja.

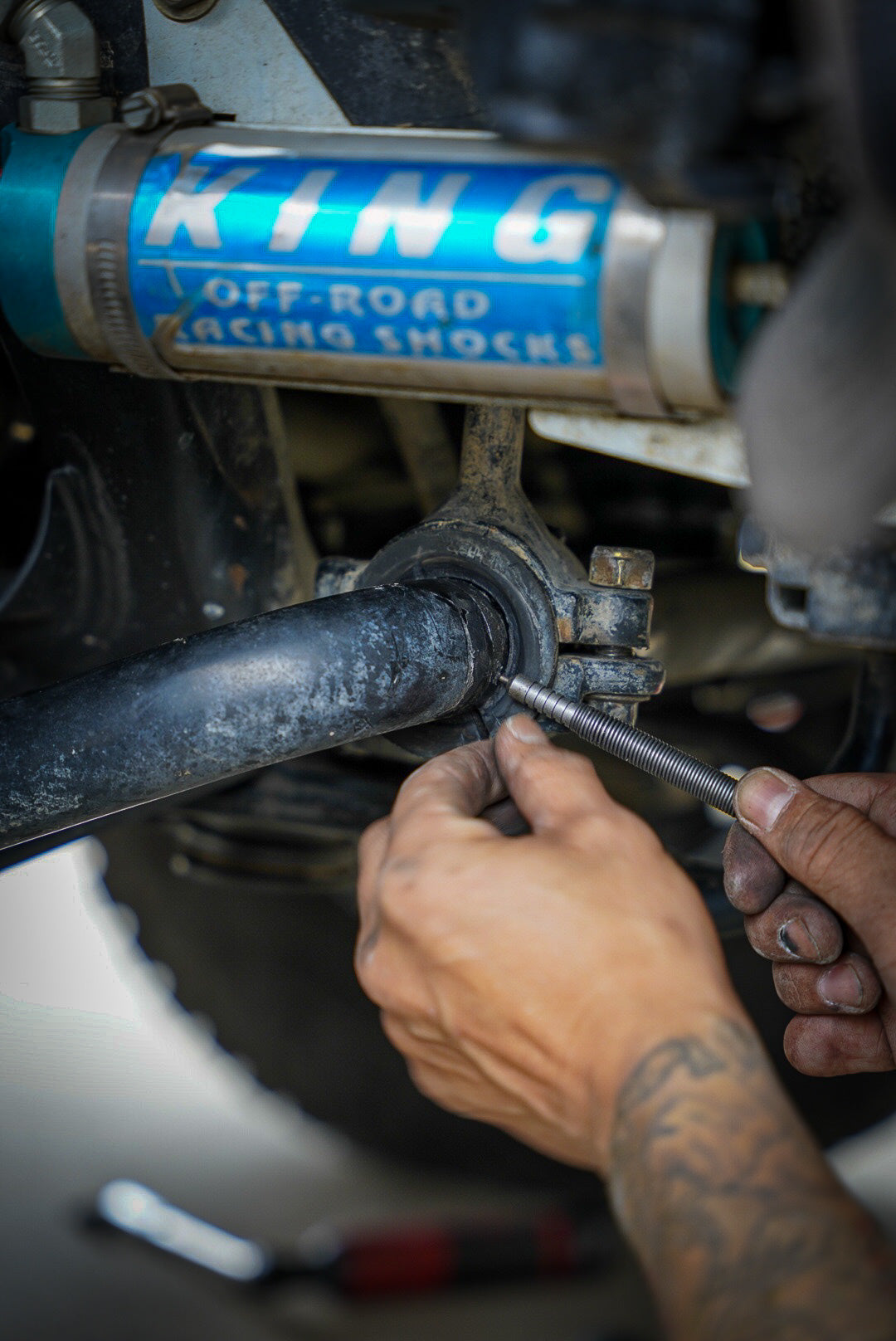

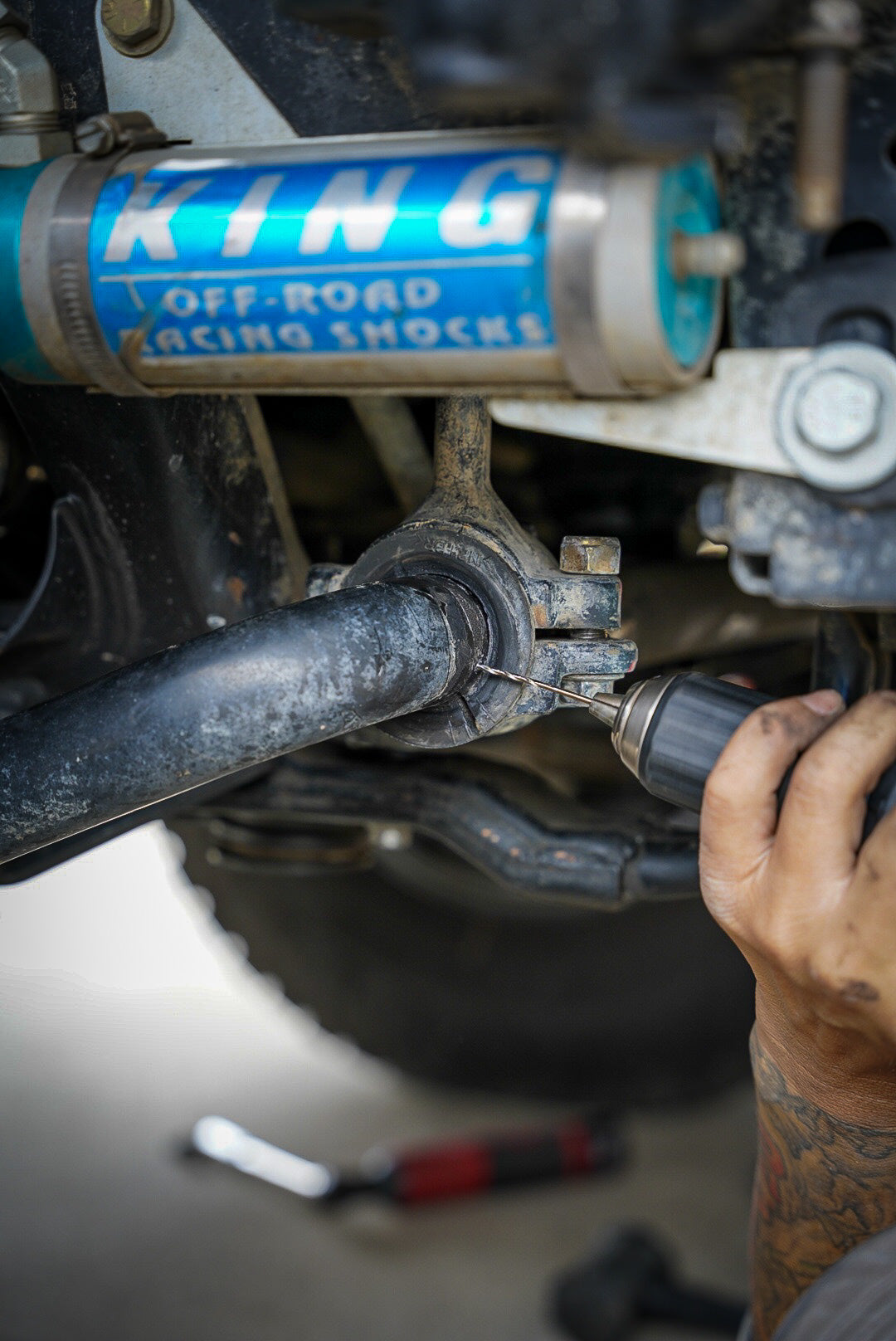

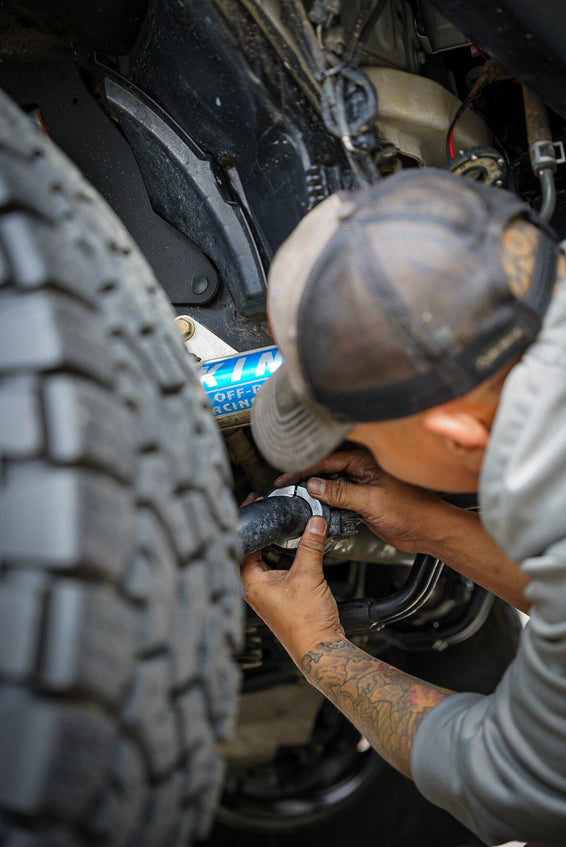

Install Notes

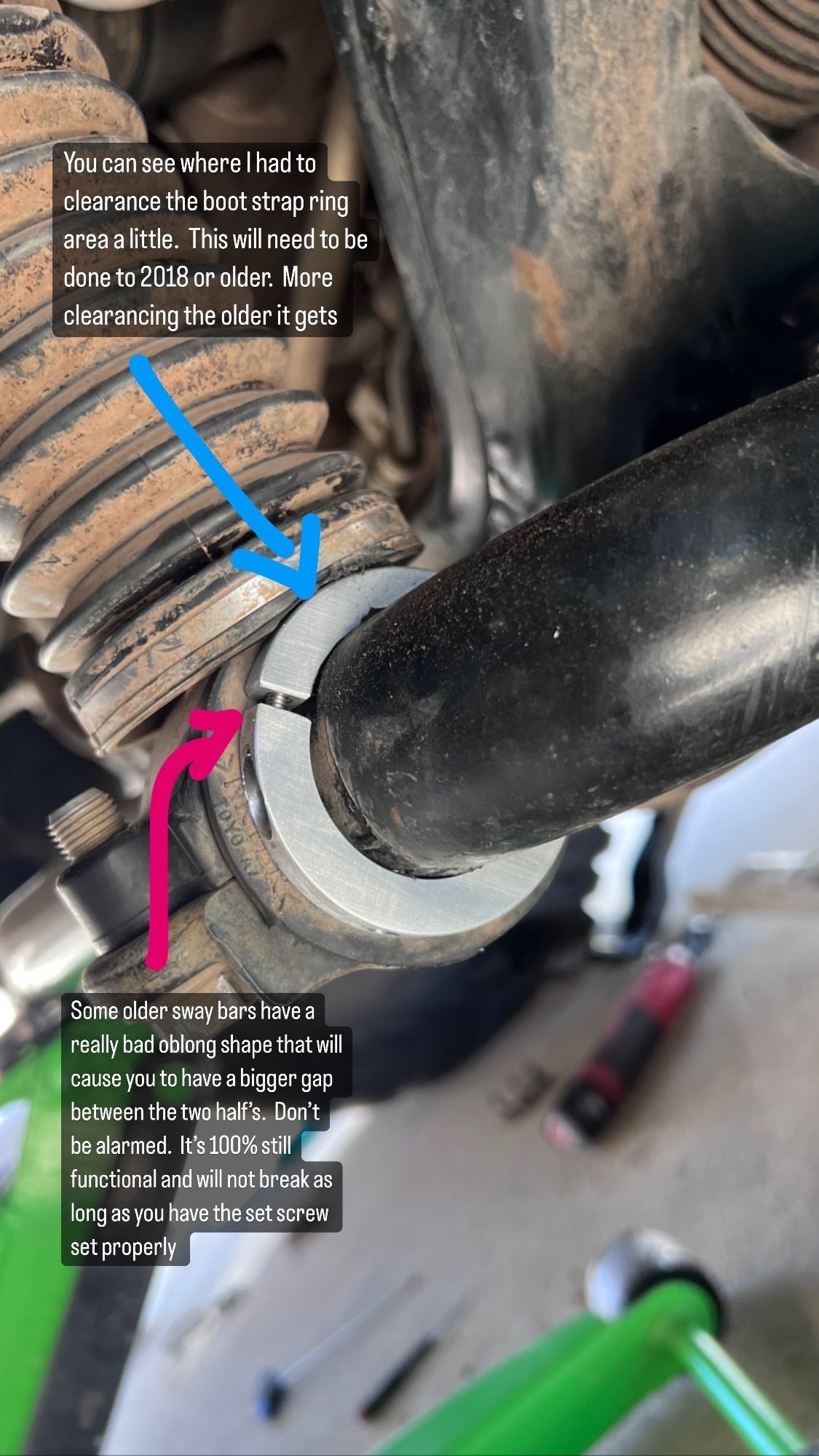

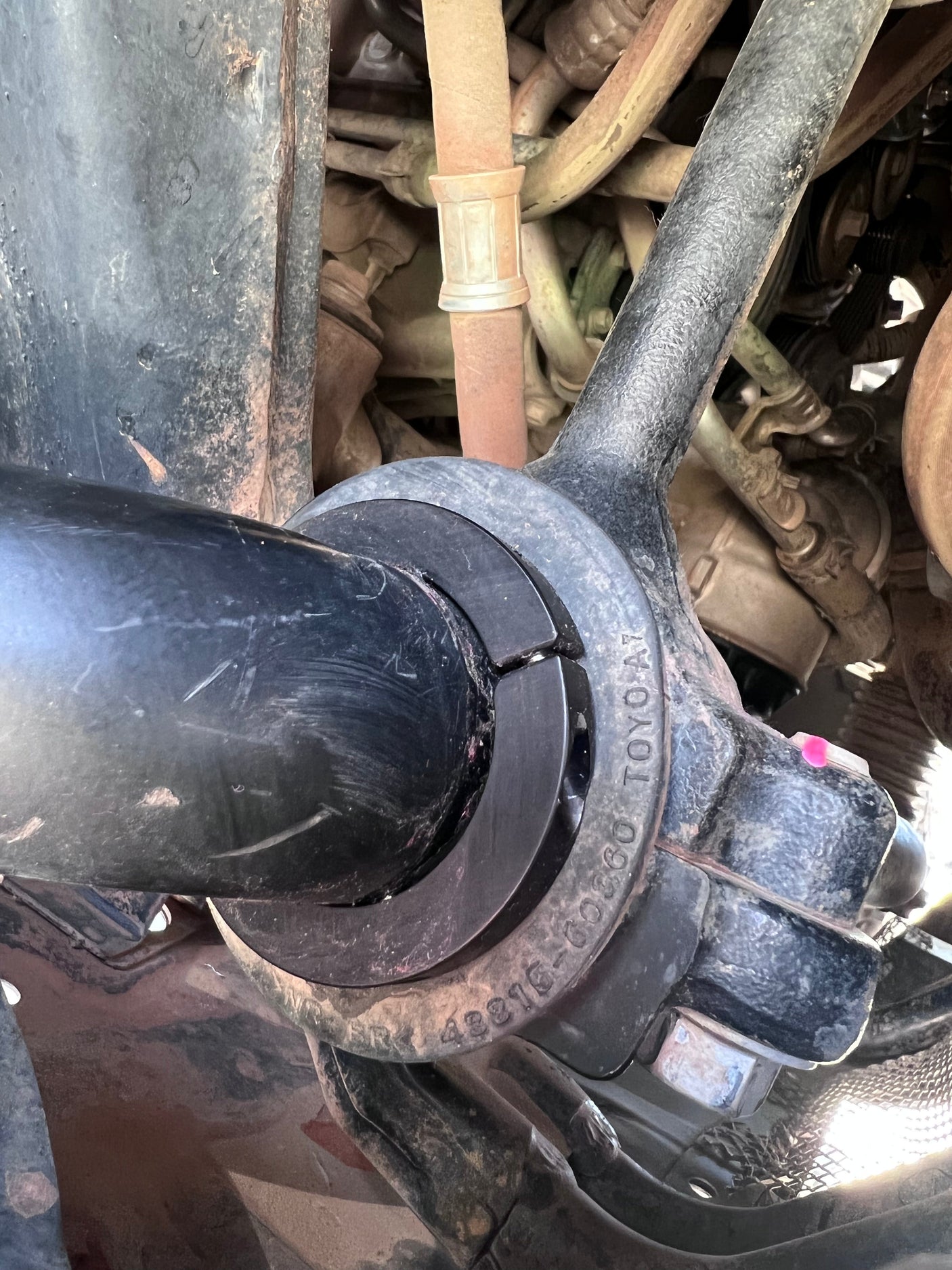

Fits all 2010–current 5th gen 4Runners with KDSS. Early 2010–2014 models use a slightly different sway bar shape, so you may see a larger gap between clamp halves, but function is unaffected. 2010–2017 trucks use older-style bushings and bottom caps. You may need to slightly trim the boot strap ring or upgrade to 2018+ bottom caps and bushings for perfect fit.

Download Front Sway Bar Clamp Install PDF

Videos

Finish Options

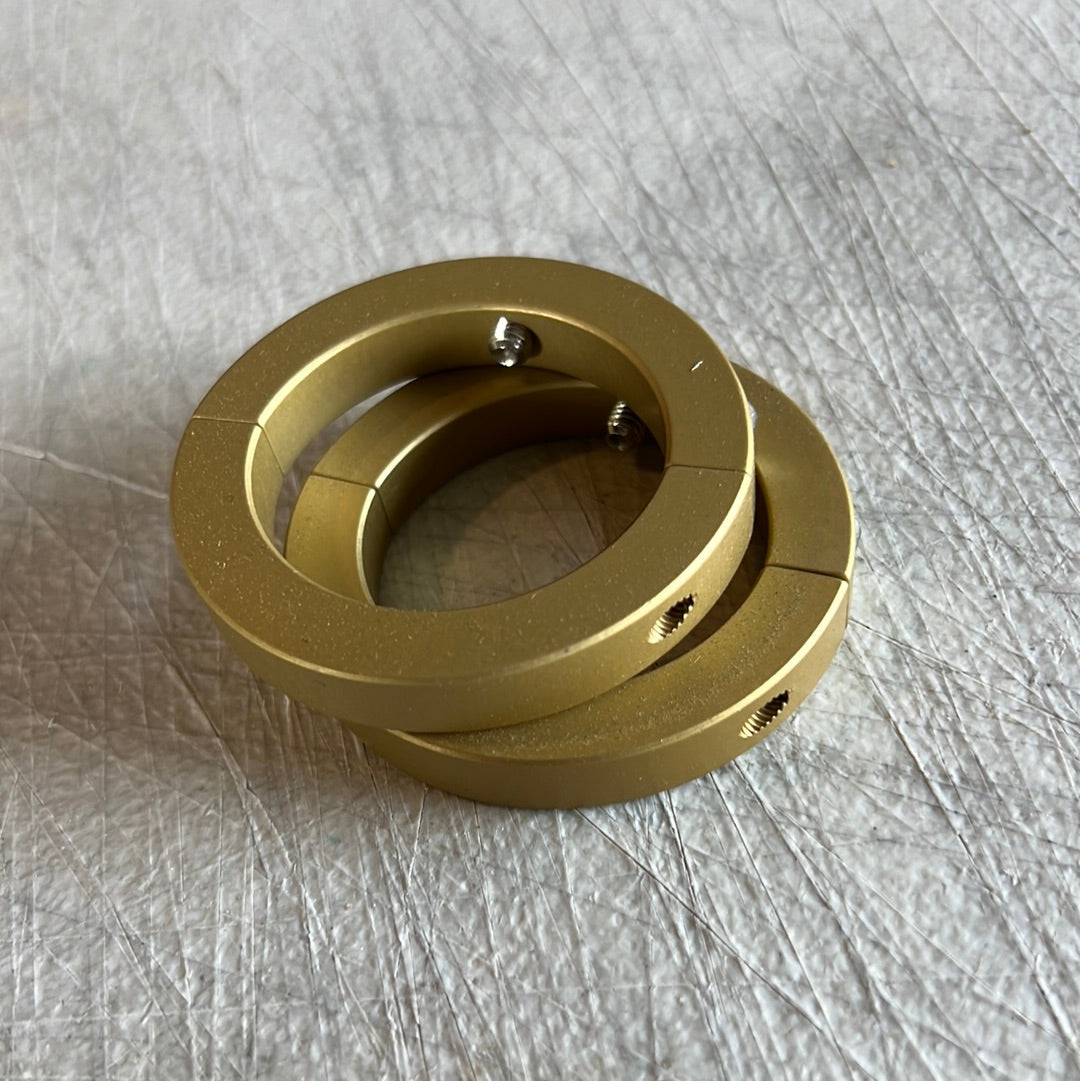

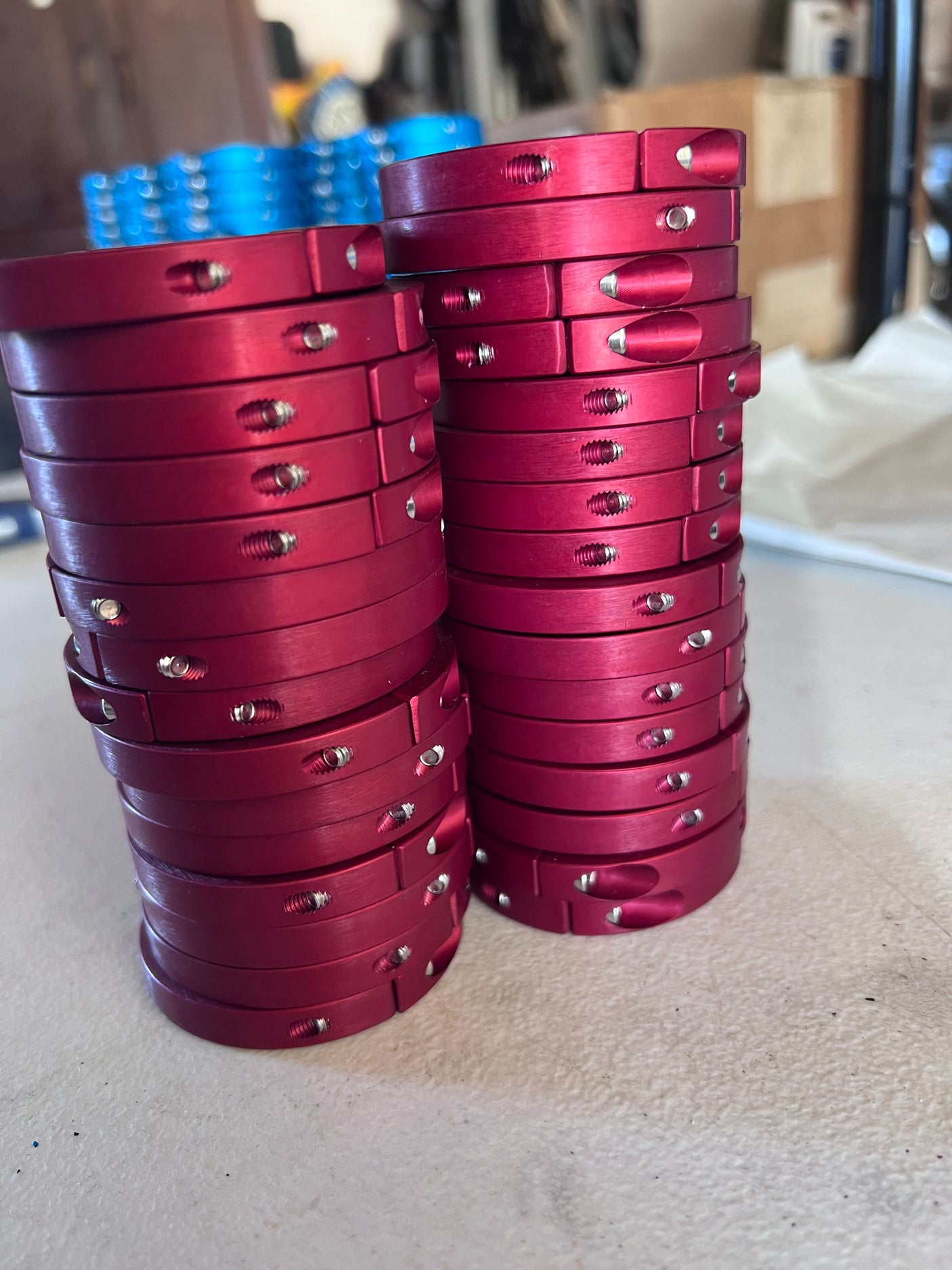

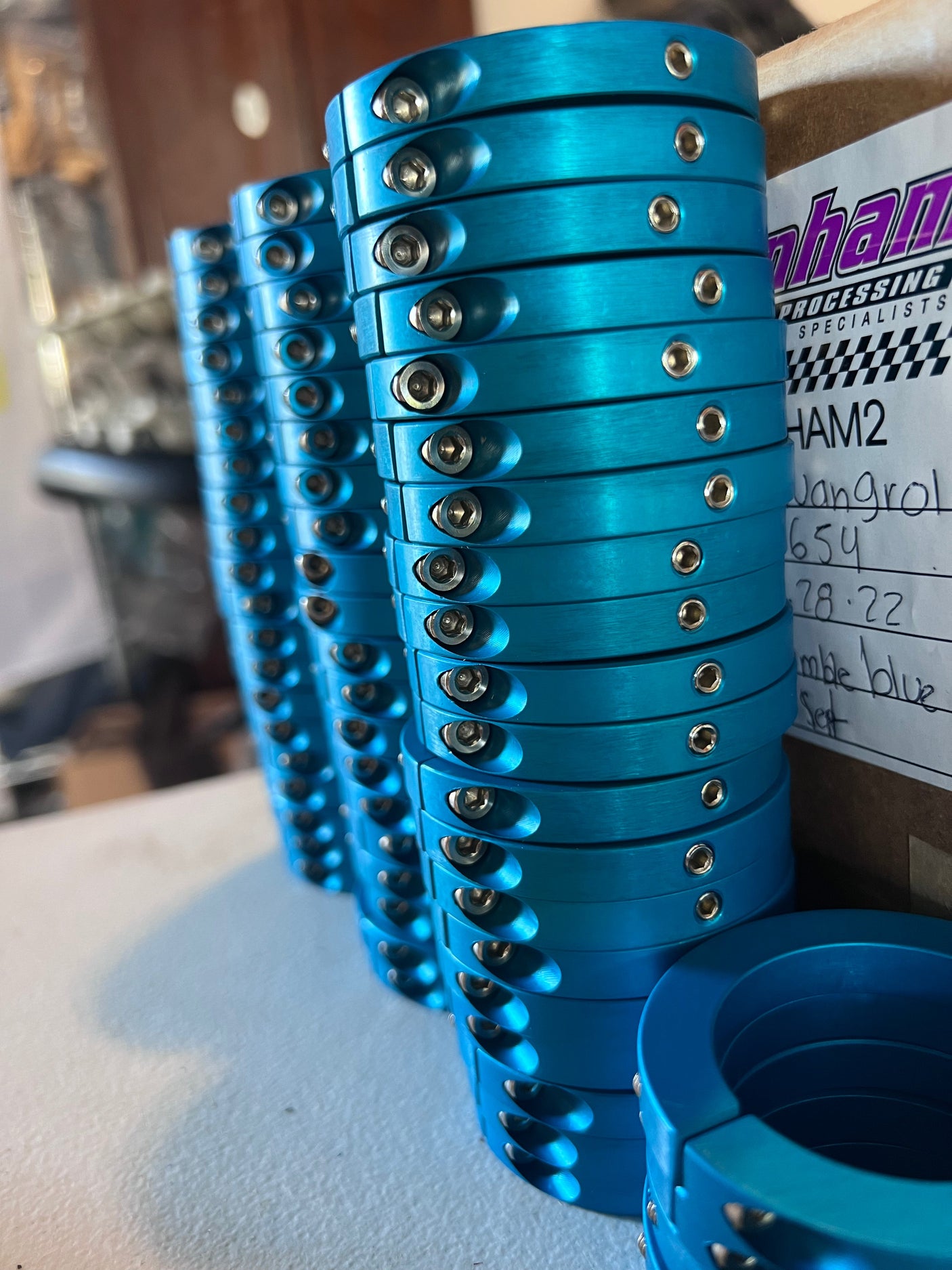

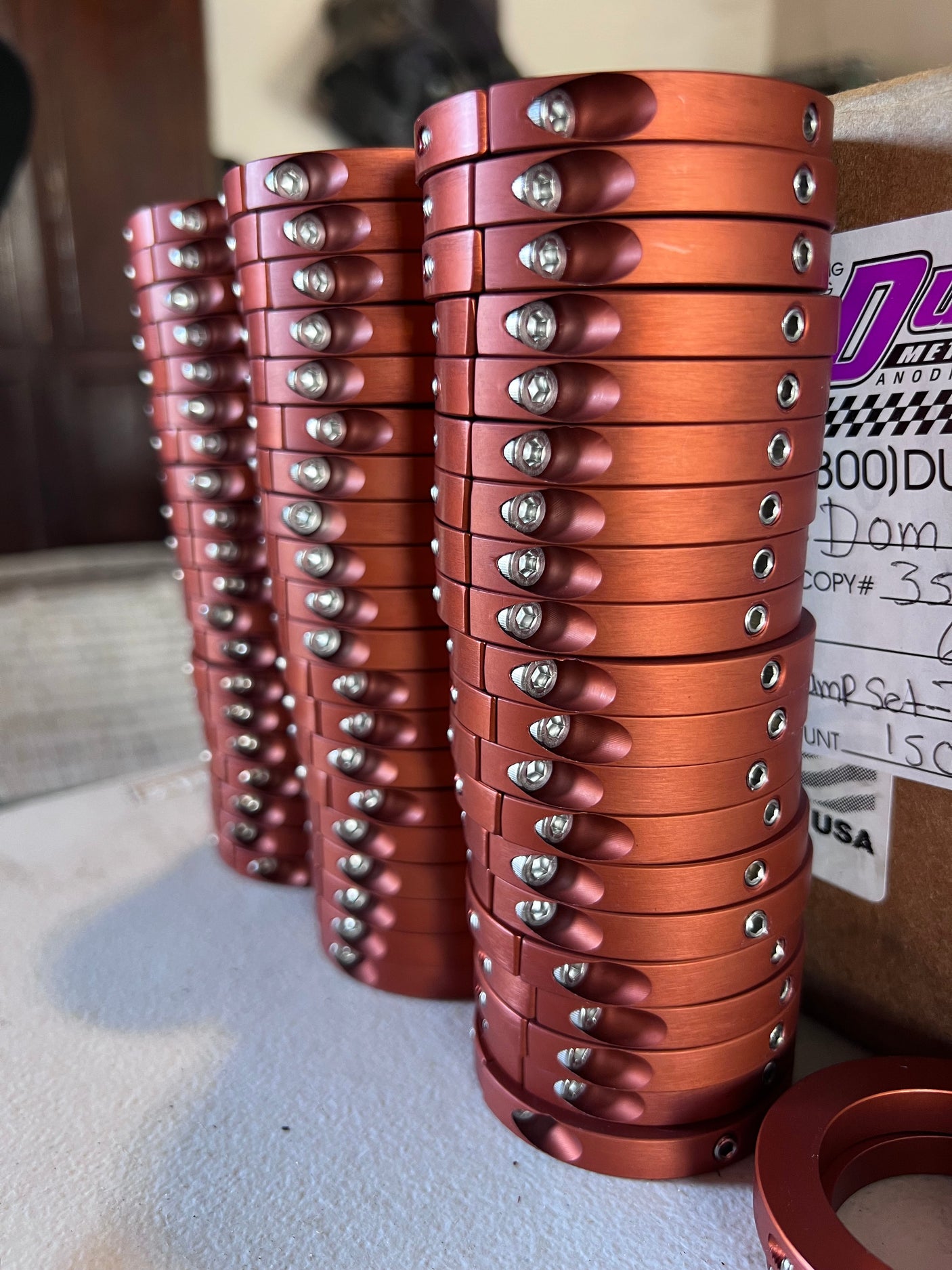

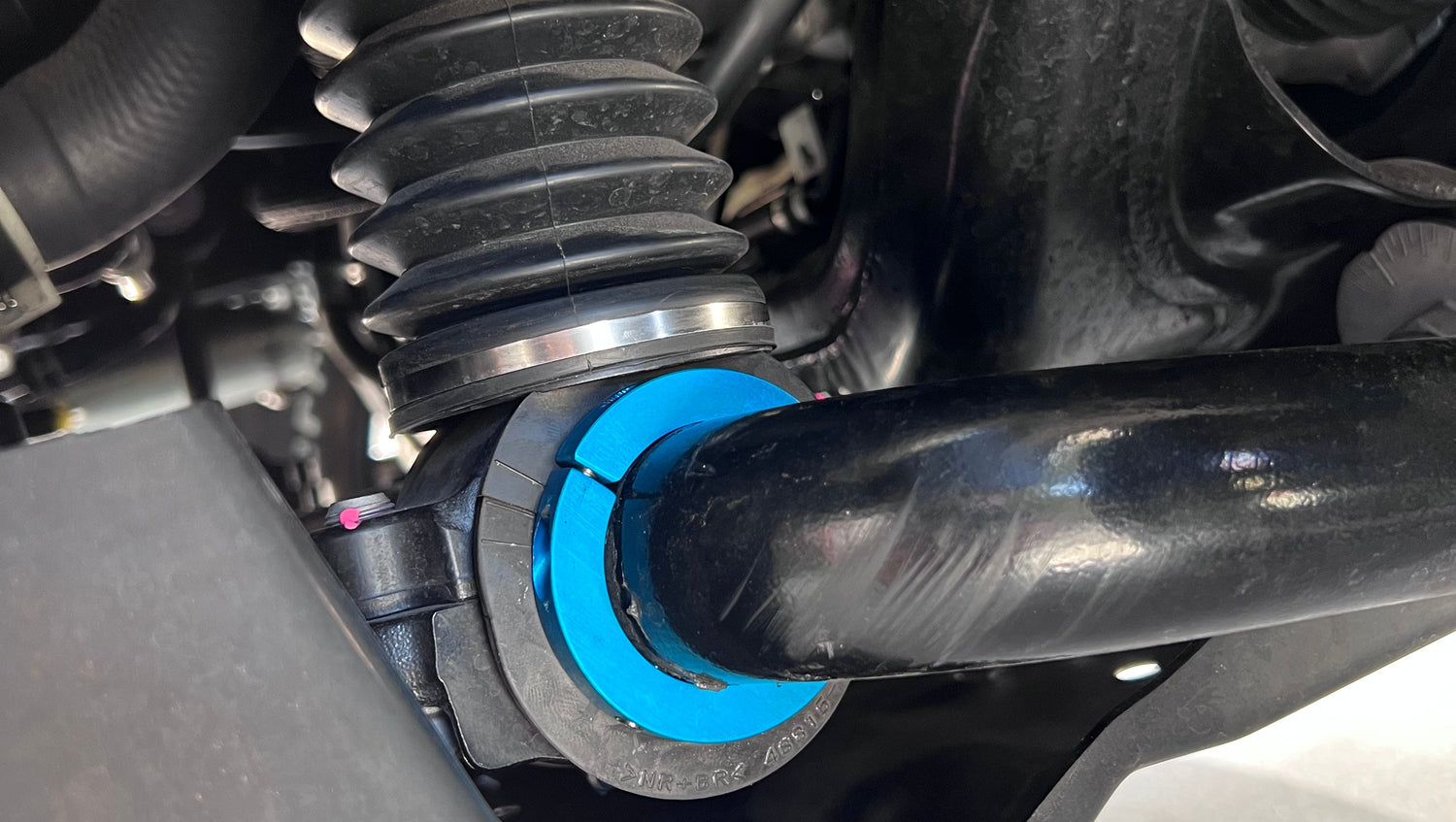

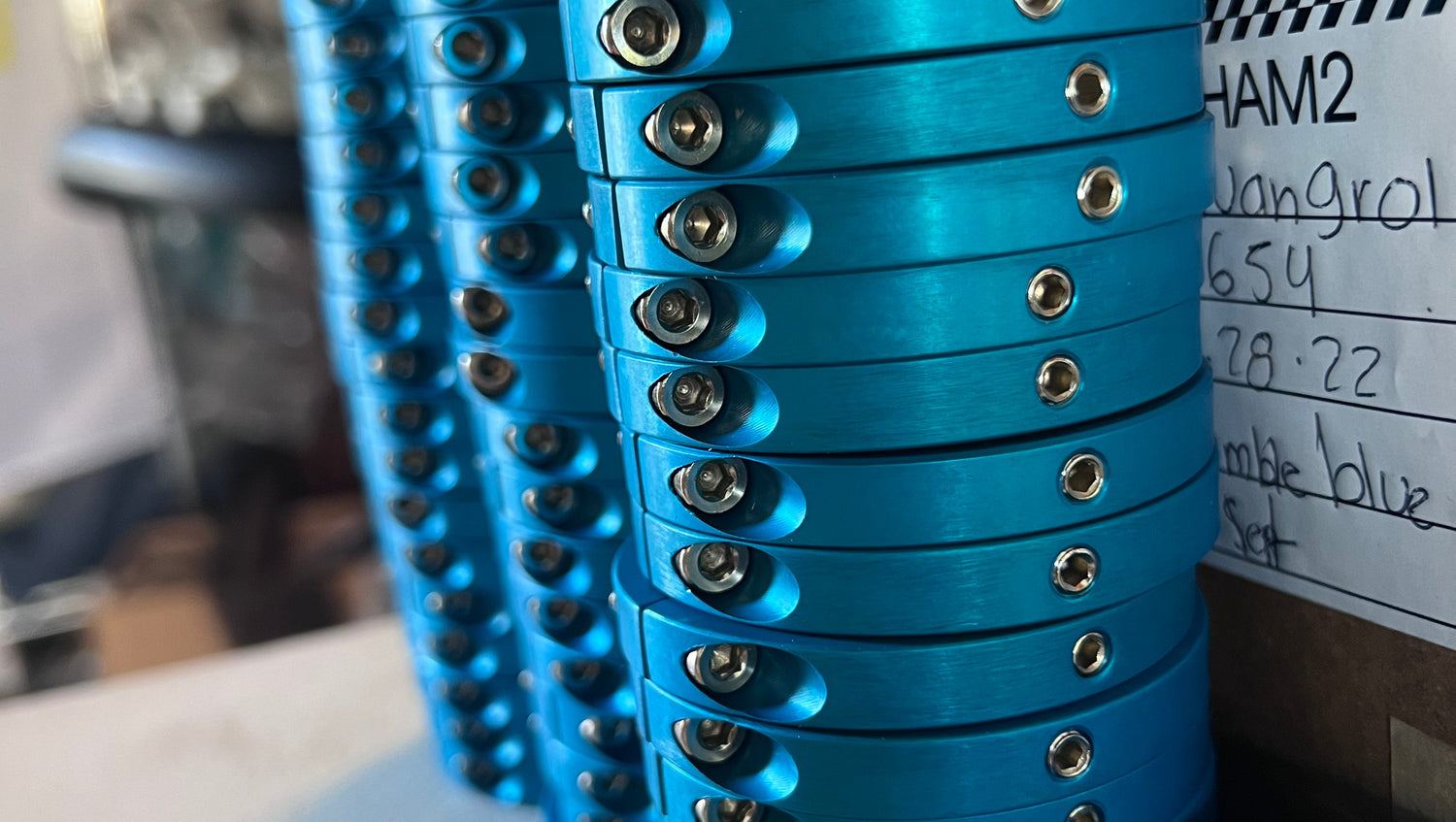

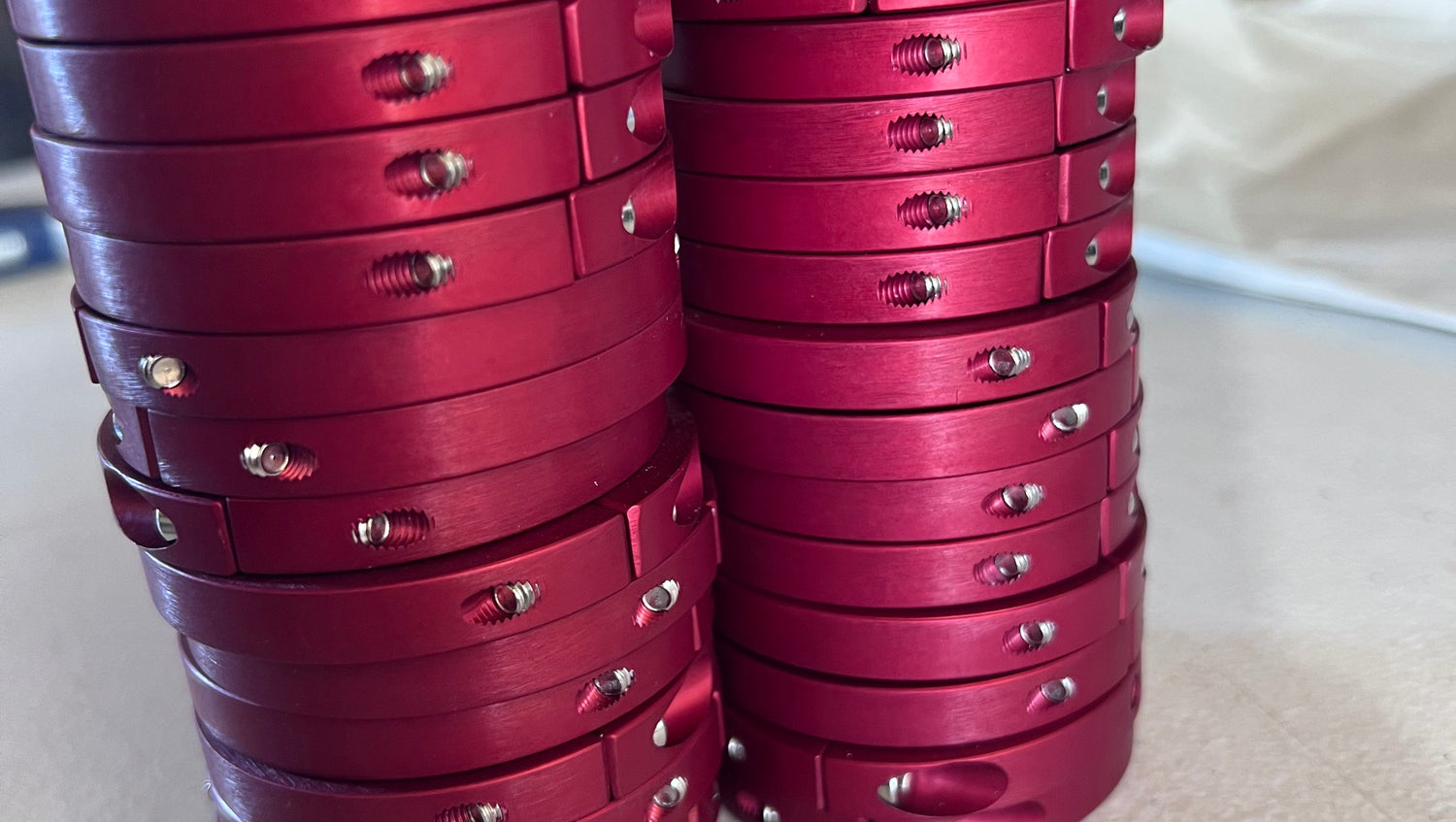

Available in multiple anodized and powder-coat finishes. Gold is the most difficult color to coat consistently and may vary from yellow-gold to orange-gold depending on the batch.
